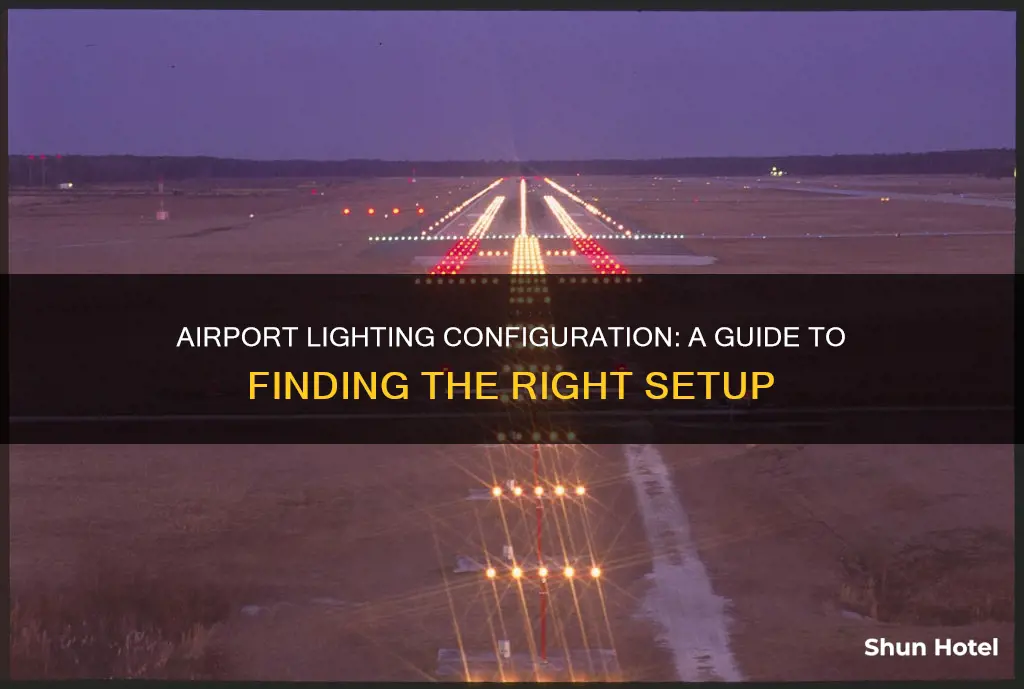

Airport lighting configurations are designed to guide pilots onto the runway, especially in low-visibility conditions. The lighting systems are standardised to help pilots identify key locations at an airport at night. These lights are spaced at defined intervals and are of various colours, sizes, and configurations. Pilots may request to turn the lights on or off and even vary their intensity. Airport lighting aids are also used in emergency situations.
| Characteristics | Values |
|---|---|
| Purpose | Help pilots navigate on the ground, especially at night or in low-visibility conditions |
| Control | Generally controlled by the Air Traffic Control Tower (ATCT); pilots may request to control lighting themselves at locations without a control tower |
| Configuration | There is no single configuration; configurations vary depending on the airport and runway |
| Lights | Runway edge lights, in-pavement lights, approach lights, Sequenced flashing lights (SFL), Visual Approach Slope Indicators (VASI), Runway End Identifier Lights (REILs), Runway Threshold and End Lights, etc. |
| Spacing | Defined intervals |
Explore related products
What You'll Learn
Taxiway lead-off lights
These lights are often installed as alternating green and yellow lights, with green indicating the centre line and yellow indicating the edges. They are placed on exit taxiways to guide pilots and vehicle drivers when exiting the runway. The lights are colour-coded to provide visual guidance and warn pilots and drivers that they are within the runway environment or ILS critical area. The lead-off lights help flight crews to quickly and safely exit the runway and guide them to the correct taxiway.
The fixtures used for taxiway lead-off lights are bidirectional, meaning they can also function as lead-on lights when the runway direction changes. Lead-on lights are installed on entry taxiways and guide pilots and drivers when entering the runway. These lights are also colour-coded, with the same colour pattern as the lead-off lights, to indicate the boundaries of the runway or ILS critical area.
The intensity of taxiway lead-off lights can be adjusted to suit environmental conditions and visibility. At airports operating in low visibility, green centreline lighting is used on principal taxiways, with blue edge lighting on minor taxiways. Blue taxiway edge lighting may also be provided as additional guidance on sections of the taxiway that are difficult to navigate.
Taxi Availability at Nice Airport: What You Need to Know
You may want to see also
Explore related products
Runway edge lights
The lights that mark the left and right edges of the runway are typically white. However, on runways with an instrument approach, the edge lights change to yellow for the last 2,000 feet or half the runway length, whichever is less. This yellow caution zone alerts pilots that the end of the runway is approaching, which is useful for both takeoff and landing.
At the end of the runway, a horizontal line of red lights indicates the runway's termination. These red lights are preceded by a section of alternating red and white lights, which serve as a warning that the runway is nearing its end.
Runway edge lighting systems are classified by their brightness. The brightest lights are High-Intensity Runway Lights (HIRL), followed by Medium-Intensity Runway Lights (MIRL) and Low-Intensity Runway Lights (LIRL). Pilots can request adjustments to the intensity of these lights to suit their preferences and specific operations.
Radio control of lighting is available at selected airports, allowing pilots to adjust the lighting intensity by keying their aircraft's microphone. This feature is particularly useful at locations without specified hours for lighting or where there is no control tower or part-time tower.
Exploring Karachi Airport: Things to Do and See
You may want to see also
Explore related products
![[3-Pack] Disco Ball DJ Party Lights Sound Activated with Remote Control Strobe Lamp 7 Modes Stage Light for Home Room Dance Parties Karaoke Halloween Christmas Birthday Decorations](https://m.media-amazon.com/images/I/71CXY4TVTCL._AC_UL320_.jpg)
Visual Approach Slope Indicators
The VASI system is just one of the many lighting aids available to pilots during takeoff and landing. For instance, sequenced flashing lights (SFL) can be turned on and off, and their intensity can be varied to meet pilots' requests. Additionally, taxiway centreline lead-off lights, which are alternating green and yellow lights, help pilots quickly exit the runway after landing. These lights provide visual guidance to pilots and vehicle drivers, indicating that they are within the runway environment.
Another type of Visual Approach Slope Indicator is the pulsating visual approach slope indicator (PVASI), which consists of a single light unit projecting a two-colour visual approach path. The on-glide path indication is represented by a steady white light or alternating red and white lights. If the aircraft is slightly below the glide path, a steady red light is displayed. As the aircraft descends further below the glide path, the red light starts to pulsate, indicating an unsafe position. Conversely, if the aircraft is above the desired glide slope, a pulsating white light is displayed, with the pulsating rate increasing as the aircraft deviates further from the desired path.
While VASI systems are widely used, they are being gradually replaced by Precision Approach Path Indicators (PAPIs). PAPIs use lights similar to VASI but are installed in a single row of either two or four light units. PAPIs provide a more precise visual glide path, ensuring safe descents for pilots. The tri-colour visual approach slope indicator, a variation of the PAPIs, projects a three-colour visual approach path into the final approach area. These lighting systems are crucial for pilots, especially during low-visibility conditions, to ensure safe and accurate landings.
Capitol Theater NY: Which Airport to Choose?
You may want to see also
Explore related products
Runway End Identifier Lights
- Identification of a runway surrounded by other lighting
- Identification of a runway that lacks contrast with the surrounding terrain
- Identification of a runway during reduced visibility
The International Civil Aviation Organization (ICAO) recommends that runway threshold identification lights should be installed at the threshold of a non-precision approach runway when additional threshold conspicuity is necessary or where it is not practicable to provide other approach lighting aids.
The lights are flashing white lights with a flash frequency between 60 and 120 per minute. They are located symmetrically about the runway centre line, in line with the threshold and approximately 10 meters outside each line of runway edge lights.
Runways designed for low-visibility operations have a lot of lights. Not all runways have the same light configuration. For example, the runway at St. Thomas, USVI, has only basic edge lighting because the weather is usually good. On the other hand, San Francisco, which is often foggy, needs a full lighting system for low-visibility weather.
Unraveling the Mystery of Airport Code NH: Which Airlines?
You may want to see also
Explore related products
Radio-controlled lighting
There are two types of ARCAL systems: Type J and Type K. Type J systems are activated by keying the microphone five times within five seconds, while Type K is initially activated by clicking seven times within five seconds. Once activated, the intensity of Type K systems can be adjusted by keying the microphone three, five, or seven times within five seconds, respectively, for low, medium, or high intensity. If runway identification lights are also controlled by Type K ARCAL, they can be turned off by keying the microphone three times. When either type of system is activated, a 15-minute countdown starts, after which the lights turn off.
The FAA standard for the predetermined time interval is 15 minutes, which is generally adjustable. Pilots should always initially key the mike seven times to ensure all controlled lights are turned on to the maximum available intensity. If desired, the intensity can then be adjusted to a lower setting. Due to the close proximity of airports using the same frequency, radio-controlled lighting receivers may be set at a low sensitivity, requiring the aircraft to be relatively close to activate the system.
Pilots should be aware that radio-controlled lighting may not be available at all airports and should always check local airport information.
Airports in Sarasota, Florida: A Comprehensive Overview
You may want to see also
Frequently asked questions
The VASI is a system of lights that guides pilots during the approach to a runway. These lights are visible from 3-5 miles during the day and up to 20 miles or more at night. If you see two red lights over two white lights, you're on the glide path.
Airport lighting configurations vary depending on the airport and weather conditions. Some airports have basic edge lighting, while others have full lighting systems for low visibility conditions. There are also different configurations for approach lights, such as the Approach Light System (ALS), which has multiple rows of steady white lights extending from the approach end of the runway.
Pilots can request to turn lights on or off and adjust their intensity. At some airports, pilots can control the lighting themselves using radio control by keying the aircraft's microphone.
