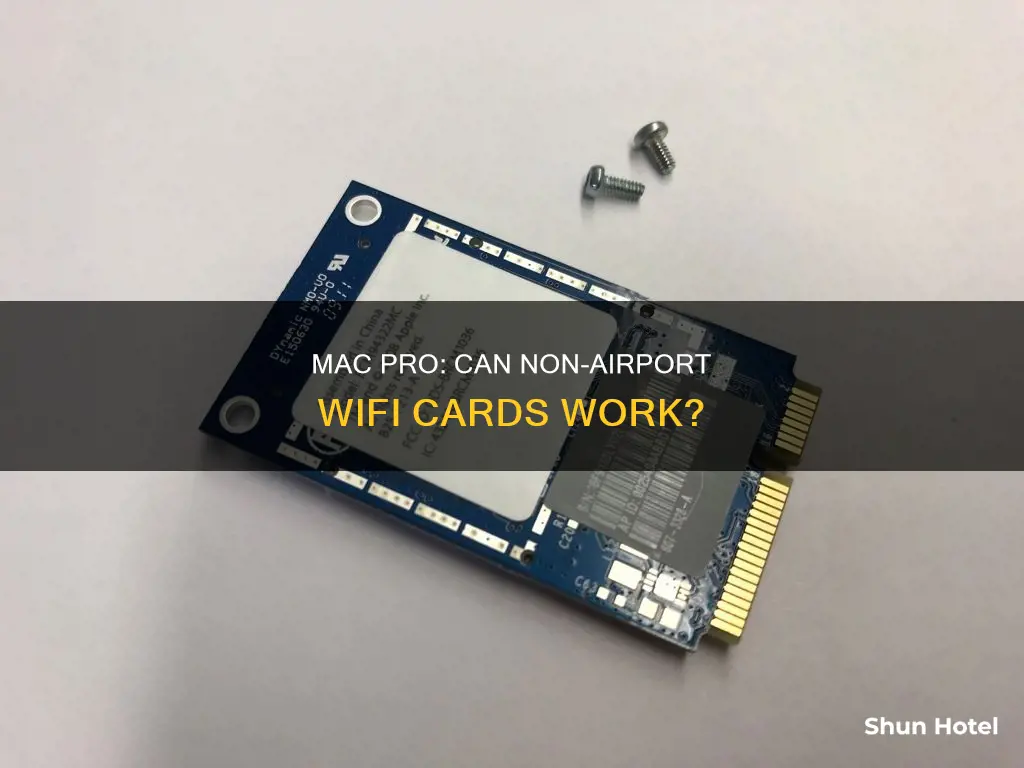

Apple's Mac Pro models from 2008 to 2012 did not have built-in WiFi. However, WiFi functionality can be added to these models by installing a third-party WiFi card, such as the Apple Airport Extreme Card, which is available on Amazon and eBay. This card can be installed in the PCIe slot and allows the Mac Pro to connect to 2.4 GHz and 5 GHz WiFi networks. While it is possible to use a USB WiFi dongle, a WiFi card is a more seamless and reliable option as it is natively supported by Mac OS X.
Explore related products
What You'll Learn
Installing a WiFi card in a Mac Pro
- Unplug your Mac Pro: Before beginning any internal work on your computer, it is essential to disconnect the power source. This ensures your safety and prevents potential damage to the components.
- Open your Mac Pro: Opening a Mac Pro is straightforward. Simply look at the back of the computer and pull the lever.
- Locate the WiFi slot: The WiFi slot is usually located on the motherboard. Look for two screw holes and the card slot.
- Prepare the WiFi card: For this step, you will need a compatible WiFi card, such as the Apple MB363Z/A Airport Extreme Wireless Upgrade Kit, which is recognised by macOS and does not require additional drivers.
- Install the WiFi card: Place the WiFi card into the card slot and secure it with the screws. Ensure that the card is firmly in place and connected properly.
- Connect the antenna wires: This step can be a bit tricky, as the WiFi and Bluetooth antenna wires are often tucked underneath the logic board and can be challenging to find. Follow the thin black wires marked "1", "2", and "3" to make the correct connections. You may need to use an alternative approach, such as first installing the WiFi card and then aligning and securing the wires with the help of a pencil or a similar tool.
- Reconnect power and test: Reconnect the power and other cables, then power on your Mac Pro. Go to "System Preferences" and then "Network" to detect your newly installed WiFi card. Click "Turn Wi-Fi On" to enable your WiFi connection.
It is important to note that the specific steps may vary slightly depending on the model of your Mac Pro. Some older models, such as the Mac Pro 1,1, may have different card requirements and antenna configurations. Additionally, some users have reported that installing a new version of macOS after installing a non-Apple WiFi card can cause issues, so it is recommended to refer to specific guides or seek technical advice for your Mac Pro model if needed.
Polaroids and Airport Security: What's the Deal?
You may want to see also
Explore related products
Bluetooth module removal for antenna connection
To replace the Bluetooth antenna on a MacBook Pro 15" Unibody Mid 2012, follow these steps:
Remove the battery:
- Use a coin or spudger to rotate the battery-locking screw 90 degrees clockwise.
- Lift the battery out of the computer.
Remove screws from the battery compartment:
- Remove the three evenly spaced Phillips screws from along the rear wall of the battery compartment.
- Remove the two 6 mm Phillips #00 screws from either side of the right wall of the battery compartment (not the ones closest to the battery connector).
- Remove the four 3 mm indicated Phillips #00 screws from the front wall of the battery compartment. When working from the left, remove the 2nd, 4th, 7th, and 9th screws.
Remove screws from the optical side:
Remove the two 5.2 mm shouldered Phillips #00 screws from the optical side of the computer. It is not necessary to remove the similar screws on the other side.
Pry up the upper case:
Starting near the display, work around to the front of the computer and pry up on the upper case. It is held with clips on the right above the optical drive. Apply firm lifting pressure to release the clips. Be careful when prying to avoid damaging the case.
Disconnect the display data cable:
Disconnect the display data cable from the logic board. If there is no pull-tab on the connector, use a spudger to disconnect it gently.
Remove the hard drive:
Grasp the white plastic tab attached to the hard drive and pull it to the left to remove it from the computer.
Remove the optical drive screws:
Remove the two Phillips screws from the front edge of the optical drive. The shorter screw (3 mm) is recessed nearest the RAM modules, and the other is 3.5 mm.
Disconnect the optical drive cables:
- Disconnect the orange optical drive ribbon cable from the logic board.
- Disconnect the gold Bluetooth antenna connector from the Bluetooth board using a spudger.
Remove the Bluetooth antenna:
Lift the Bluetooth antenna out of the computer.
Install the new antenna:
- Ensure you have the correct replacement part (for example, part # 056-3517 REV B for the MacBook Pro 15" Unibody Mid 2012).
- Follow the above steps in reverse order to assemble the device with the new Bluetooth antenna.
It is worth noting that some users have reported Bluetooth connection issues with their Mac Pros due to interference from nearby objects, such as metal glasses frames or USB plugs. If you experience persistent Bluetooth issues, try removing potential sources of interference to see if this improves the connection.
Traveling with Granola Bars: TSA-Friendly Snacking
You may want to see also
Explore related products
![USB 3.0 to Ethernet Adapter, USB C to RJ45 Gigabit LAN (1000Mbps) Network Adapter, Compatible with MacBook/Pro/Air, Surface Pro, Windows 11/10/8/7, Mac OS [Aluminium Shell&Nylon Cable]](https://m.media-amazon.com/images/I/71H5Hk-OK+L._AC_UY218_.jpg)
Antenna wire issues
When it comes to installing a WiFi card in a Mac Pro, there are a few things to keep in mind regarding the antenna wires. Firstly, the Mac Pro has two built-in WiFi antennas, and the correct connection is essential for optimal WiFi performance. The antenna wires are labelled, and the correct combination is connecting wire "1" to one of the airport card antenna connections and then connecting either wire "2" or "3" to the other antenna connector. No other combination will work.
Now, let's discuss the different scenarios and issues that can arise with antenna wires:
Identifying the Correct Wires
The antenna wires in a Mac Pro are typically labelled "1", "2", "3", and sometimes there is a fourth wire labelled "BT" for Bluetooth. The BT wire is connected to the Bluetooth card, and it is important to identify this wire correctly. In some cases, the BT wire may be attached to the motherboard, which can cause confusion. It is important to consult official documentation or seek advice from Apple Service Techs to ensure the correct identification of wires.
Antenna Wire Combinations
There seems to be some confusion regarding the correct combination of antenna wires for the WiFi card. Some sources suggest that only wire "1" is connected to the WiFi card, while others mention connecting both wires "2" and "3". It is important to refer to the specific model of your Mac Pro and the instructions provided by Apple to ensure the correct wiring configuration.
Antenna Wire Lengths
The length of the antenna wires can vary, and this may impact their placement and connection. For example, wire "1" connected to the BT module might be longer than the other wires. This could be intentional, as in the case of the newer machines, where Apple may have made adjustments.
Antenna Wire Placement
The placement of the antenna wires is crucial for optimal WiFi performance. In some cases, the wires may be tucked under the logic board towards the edge, making them hard to find and connect. It is recommended to use tools like needle-nose pliers, tweezers, or a spunger to carefully handle and connect the wires to the terminals.
Antenna Wire Compatibility
When upgrading to a newer WiFi card, it is important to ensure compatibility with the antenna wires. For example, upgrading to the 802.11n version may require a newer antenna board with three cables to match your given system. Additionally, different WiFi cards may have different antenna configurations, so it is essential to verify the correct placement of the antenna wires for the specific card being used.
In conclusion, while installing a WiFi card in a Mac Pro, it is important to pay close attention to the antenna wires. Correct identification, combination, placement, and compatibility of the wires are crucial for establishing a stable and efficient WiFi connection. When in doubt, it is always recommended to seek assistance from Apple Service Techs or experienced professionals to avoid any issues.
Sandwiches on a Plane: What's Allowed in Ireland?
You may want to see also
Explore related products
$40.19 $42.9
Compatibility with Mac OS X
The compatibility of non-Apple WiFi cards with Mac computers depends on several factors, including the specific Mac model, the version of Mac OS X, and the WiFi card's specifications. Here are some considerations regarding compatibility with Mac OS X:
Mac OS X Driver Support: For a non-Apple WiFi card to function correctly, it requires compatible drivers that facilitate communication between the hardware and the operating system. Some WiFi card manufacturers provide specific drivers for Mac OS X, ensuring proper functionality. It is important to check if the manufacturer of your chosen WiFi card offers Mac OS X drivers and ensure that they are compatible with your specific version of Mac OS X.
Hardware Compatibility: Different Mac models may have varying hardware specifications, including differences in WiFi card connectors, antennas, and power requirements. It is crucial to ensure that the non-Apple WiFi card you intend to use is physically compatible with your Mac model. This includes checking the form factor of the WiFi card, the antenna connections, and ensuring it receives the correct power input.
Functionality and Performance: Even if a non-Apple WiFi card is physically compatible, there may be differences in functionality and performance compared to Apple's proprietary Airport cards. Some advanced features specific to Apple's cards, such as Power Management, Wake-on-Wireless, or hardware-based encryption, may not be fully supported by third-party cards, depending on the manufacturer and driver support.
Network Connectivity: Ensure that the non-Apple WiFi card supports the wireless standards and network protocols used in your environment. This includes compatibility with wireless standards like 802.11 a/b/g/n/ac/ax and support for security protocols such as WPA2 or WPA3.
Firmware Updates: Keep in mind that some non-Apple WiFi cards may require firmware updates to ensure optimal performance and compatibility with Mac OS X. Check the manufacturer's website for the latest firmware updates and instructions for your specific WiFi card.
Refer to Apple's support resources and the documentation provided by the WiFi card manufacturer for comprehensive compatibility information specific to your Mac model and version of Mac OS X.
Purchasing MetroCards: A Guide for JFK Airport Visitors
You may want to see also
Explore related products
Alternative options for WiFi cards
Apple's Mac Pro models from 2008 to 2012 can be installed with a WiFi card. The Apple MB363Z/A Airport Extreme Wireless Upgrade Kit is available on Amazon for $25 and is instantly recognised by macOS X. This setup will pick up 2.4GHz and 5GHz WiFi.
However, if you are looking for alternative options for WiFi cards, there are a few options available:
- USB WiFi dongles: These are less practical than installing a WiFi card as they may not be automatically recognised by macOS X and may require specific drivers and software. However, they are still a viable option and can be purchased for a low price.
- Rosewill USB WiFi adapter: This is a USB WiFi adapter specifically designed for Mac and is available for around $30.
- ALFA AWUS036ACM: This is a reliable USB WiFi adapter, but it is not compatible with the MacBook Pro M2.
- 802.11ac AC1200 High-Speed USB Adapter: This is a network interface card (NIC) that presents itself as a USB peripheral to the computer. It has large antennas, which may not be desirable for some users.
- Travel Routers or Pocket Routers: These devices can be powered over USB-C and used as an alternative to WiFi cards.
Additionally, some users have suggested connecting the Mac Pro to another device, such as a MacBook Pro, via Ethernet to access the internet. This can be a simple and cost-effective solution if you already have the necessary equipment.
It is important to note that some Mac Pros may have different WiFi card requirements depending on the model. For example, the Mac Pro 1,1 does not have an airport card, while the Mac Pro 5.1 does.
Exploring Xiamen: Navigating Gaoqi International Airport
You may want to see also
Frequently asked questions
Yes, but it is more complicated than installing an Apple WiFi card, as you will need to install specific drivers and software to connect to your WiFi network.
Yes, but Mac OS X may not recognize it automatically, and you will likely need to install specific drivers and software.
You can use the Apple MB363Z/A Airport Extreme Wireless Upgrade Kit, which is compatible with Mac Pro models from 2008 to 2012. For Mac Pro 5,1, you can use the Apple Airport Wireless Extreme 802.11n card, or a Fenvi T919 if you don't mind using a PCIe slot.
You can buy them on Amazon, eBay, or from specialized websites like osxwifi.com.
It depends on your Mac Pro model. For Mac Pros from 2008 to 2012, you will need a Philips 0 or Philips 1 screwdriver. You will also need to connect the WiFi connectors, which can be fiddly. For Mac Pro 5,1, you will need to remove the Bluetooth module and purchase a Bluetooth antenna extension.
