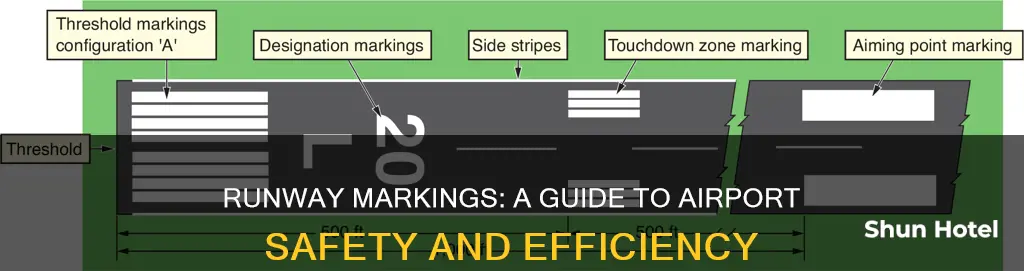

Airport runway markings are crucial to airport operations and safety. They are used to guide aircraft during takeoff and landing, and to indicate holding positions and intersections. These markings include centerlines, side stripes, threshold markings, and shoulder markings, each with specific measurements and spacing. For instance, a centerline marking is 120 ft long and 36 inches wide, with an 80-ft gap between each stripe, aiding pilots in determining their landing point. Additionally, the use of designated colors and specific naming systems for runways and taxiways helps prevent confusion and misidentification. These markings enable Air Traffic Control to effectively direct aircraft and vehicles on the ground, ensuring smooth and secure airport operations.
Explore related products
What You'll Learn
- Runway centreline markings help pilots stay in the middle of the runway
- Runway holding position markings are used for land and hold short operations
- Taxiway markings help pilots navigate the designated path
- Runway side stripes mark the edges of a runway
- Runway threshold markings indicate the beginning of the runway available for landing
Runway centreline markings help pilots stay in the middle of the runway
Runway centreline markings are an important aid for pilots, helping them to stay in the middle of the runway. They are similar to the centreline markings on a road, but with the crucial difference that pilots need to stay in the middle of the line, not to the side. Each centreline stripe is 120 feet long and 36 inches wide, with an 80-foot gap between each stripe. These markings are especially useful for determining a landing point, helping pilots to land more precisely. For example, a commercial pilot applicant needs to land within 100 feet of their designated landing point. By using the runway centreline markings as a guide, pilots can practice and execute more accurate landings.
The centreline markings also serve as a measuring tool. For instance, in the case of an Instrument Flight Rules (IFR) flight in foggy conditions, pilots can use the markings to measure their progress down the runway. Additionally, the spacing between the stripes is non-standard in the 1,800-foot clear area at the beginning of some runways, which have a combination of precision and non-precision touchdown zone markings.
Runway side stripe markings, which are solid white lines, also play a role in helping pilots stay centred. These lines mark the edges of the runway and are crucial for identifying the width and middle of the runway. Runway shoulder markings, which are less common, are yellow lines that indicate the paved areas adjacent to the runway not intended for aircraft use.
While centreline markings are a universal feature, it is important to note that two different airports may use the same name for a taxiway. For example, taxiway "A" in Seattle-Tacoma is unrelated to taxiway "A" in Phoenix Sky Harbor. This standard naming system can lead to confusion, but airport markings use distinct colours to prevent misidentification.
Dallas Airport Shooter: Did He Survive?
You may want to see also
Explore related products
Runway holding position markings are used for land and hold short operations
Runway markings are a system of symbols, lines, and colours found on runways, taxiways, aprons, and other areas of an airport. They serve as visual aids to guide pilots, ground crew, and Air Traffic Control (ATC), indicating the boundaries and areas of different spaces of the airfield, such as runways, taxiways, holding positions, and parking areas.
At airports with an Instrument Landing System (ILS), the holding position line may be moved back, or a specific ILS holding position line may be created for certain operations. These ILS holding position markings are referred to by the specific ILS category they are protecting, such as "CAT I" or "CAT II." The usual holding point closer to the runway is sometimes called the "visual holding point."
The taxiway centerline is a single continuous yellow line, providing a visual cue for taxiing along a designated path. While it is ideal for the aircraft to be centred over this line, it does not guarantee wingtip clearance with other aircraft or objects. At larger commercial service airports, an enhanced taxiway centerline may be used, consisting of a parallel line of yellow dashes on either side of the normal taxiway centerline.
Runway centreline markings are also important, as they help pilots stay in the middle of the runway and provide guidance. Each runway centreline stripe is 120 feet long and 36 inches wide, with 80-foot gaps between each stripe. These markings are crucial for determining landing points and measuring distances on the runway.
Barbados Airport: Is There Air Conditioning?
You may want to see also
Explore related products
Taxiway markings help pilots navigate the designated path
Taxiway markings are crucial for pilots to navigate the designated path. These markings are designed to provide clear visual cues, allowing pilots to taxi their aircraft safely and efficiently. The centerline markings play a vital role in this regard.
The taxiway centerline is typically a single continuous yellow line, ranging from 6 to 12 inches in width. Pilots are instructed to keep their aircraft centered over this line during taxi operations. Maintaining this position ensures safe taxiing along the designated path, although it does not guarantee clearance from potential obstacles or other aircraft.
In addition to the centerline, taxiways may also feature edge markings. These markings serve to delineate the boundary of the taxiway, separating it from adjacent pavement areas not intended for aircraft use. This is particularly important for maintaining safety and preventing aircraft from veering off the designated path.
At certain airports, taxiways may be located in close proximity to runway approach or departure areas. In such cases, holding position markings become crucial. These markings indicate specific areas where aircraft must hold their position to avoid interfering with runway operations. Compliance with these markings is mandatory, ensuring that aircraft do not inadvertently enter active runways during critical phases of flight.
Furthermore, taxiways may also incorporate shoulder markings and holding position markings for Instrument Landing System (ILS) critical areas. These markings are strategically placed to provide additional guidance and ensure safe operations during taxiing, approach, and departure procedures.
By adhering to these taxiway markings, pilots can effectively navigate their aircraft along the designated path, maintaining safety, efficiency, and smooth traffic flow within the airport environment.
Houston's Commercial Airports: How Many Are There?
You may want to see also
Explore related products
Runway side stripes mark the edges of a runway
Runway side stripes are solid white lines that mark the edges of a runway. They are one of the least complicated markings on a runway but are extremely important for identifying the width (and middle) of the runway. They are similar to the centerlines on roads, but instead of staying to the side, pilots aim to stay in the middle of the runway centerlines.
Runway centerlines are not only useful for guidance but also for measurement. Each runway centerline stripe is 120 feet long and 36 inches wide, with 80-foot gaps between each stripe. These measurements are a great aid in determining the landing point or how far down the runway an aircraft has travelled. For example, commercial pilot applicants need to land within 100 feet of their designated landing point. Therefore, if the beginning of a runway stripe is the designated touchdown point, they need to land on that stripe or within the 200-foot gap beyond it.
Runway shoulder markings are yellow stripes that mark the paved area of a runway that should not be used by aircraft. They are the least common runway markings and are used to supplement runway side stripes. These shoulder markings identify pavement areas neighbouring the runway side that are not intended for airplane use.
Runway holding position markings are used only if the runway is normally used by ATC for "land and hold short" or taxiing operations and are important for those operations. These markings are placed on runways prior to the intersection with another runway, or another point. They are accompanied by a sign with white lettering on a red background placed adjacent to the holding position markings.
O'Hare Airport: Flight Departures and Delays
You may want to see also
Explore related products
Runway threshold markings indicate the beginning of the runway available for landing
Runway threshold markings are crucial components of airport infrastructure. They indicate the start of the runway available for landing, providing pilots with a clear visual reference for touchdown. These markings are especially useful when determining landing points and measuring the distance travelled down the runway during the landing process.
The threshold markings consist of a specific pattern of stripes, with each stripe measuring 120 feet in length and 36 inches in width, separated by 80-foot gaps. The number of stripes varies depending on the width of the runway, with wider runways requiring more stripes. For example, a 60-foot-wide runway would typically have four stripes, while a 200-foot-wide runway would have 16 stripes. These markings are usually found on runways that accommodate instrument approaches and are mandated for runways serving Category C and D aircraft, as well as those used by international commercial transport.
In certain cases, the threshold may be displaced or relocated. This occurs when the beginning of the runway is not suitable for landing due to obstructions like buildings or trees. A displaced threshold reduces the effective length of the runway available for landing and is marked by white arrow-tipped centre stripes pointing towards the threshold. Additionally, a 10-foot-wide white threshold bar is painted across the width of the runway at the displaced threshold, with white arrowheads positioned just before it.
It is important to note that the area behind a displaced threshold can be utilised for take-off but not for landing, except as a rollout area after landing on the opposite end of the runway. This displaced threshold area should not be confused with a blast pad or stop-way, which is marked with yellow chevrons and is not intended for regular operations.
Understanding runway threshold markings is of paramount importance for pilots, as it enables them to navigate the airport environment safely and efficiently, enhancing their overall confidence during taxi, take-off, and landing procedures.
TNCS' Impact on Airport Ground Transportation: A Complex Web
You may want to see also
Frequently asked questions
Runway side stripe markings are solid white lines that mark the edges of a runway. They are important for identifying the width and middle of the runway.
Runway shoulder markings are yellow stripes that mark the paved area of a runway that should not be used by aircraft.
Runway holding position markings are used when a runway is used by ATC for "'land and hold short' or taxiing operations. They are placed on runways before the intersection with another runway.
Threshold markings are 150 feet long and 5.75 feet wide. They are usually found on runways with instrument approaches and are required on runways serving approach Category C and D airplanes.
Runway centerlines are similar to the centerline on a road. Pilots should aim to stay in the middle of the runway centerline, not to the side. Each stripe is 120 feet long and 36 inches wide, with 80-foot gaps in between.
