Tetrahedrons are rarely used at airports as wind indicators. They are used to indicate the direction of the wind to incoming pilots. Pilots usually assume that a windsock will be available to indicate wind direction and intensity. Windsocks are more efficient as they can also determine wind speed. Tetrahedrons are only used in airports without an operational ATC. They are also used to indicate the direction of landings and takeoffs.
Explore related products
What You'll Learn
- Tetrahedrons are rarely used at airports to indicate wind direction
- Windsocks are more commonly used to indicate wind direction and speed
- Tetrahedrons can be manually set to indicate the preferred runway
- Tetrahedrons are more stable in the wind than windsocks
- Tetrahedrons are constructed using a pivot point and a counterweight
Tetrahedrons are rarely used at airports to indicate wind direction
Windsocks are considered more efficient than tetrahedrons because they can determine both wind speed and direction. Some windsocks, such as the lighted L-806 and L-807 wind cones, are equipped with lighting features that provide pilots with visuals on wind direction and speed during night navigation. However, tetrahedrons are still occasionally used as an alternative wind indicator at some airports.

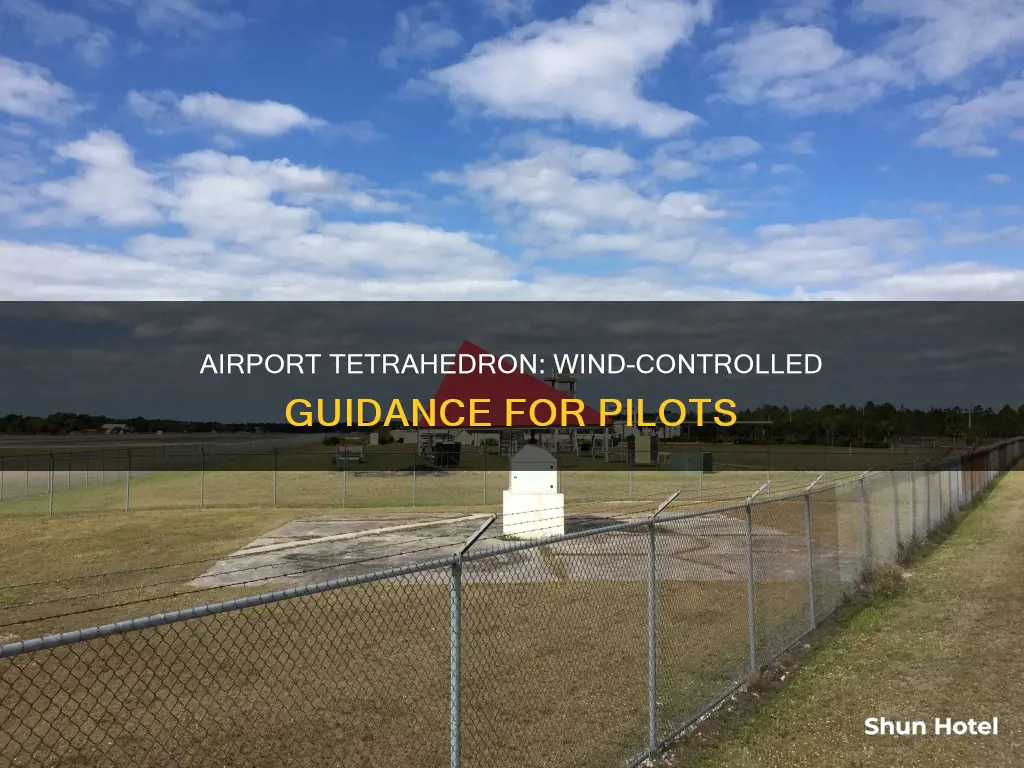

Tetrahedrons, also known as airport wind indicators, point in the direction from which the wind is blowing. They are usually located at the center of a segmented circle, which provides wind and traffic pattern information to pilots. Pilots tend to take off and land their aircraft facing the wind, as the opposing wind produces an upward force that aids in lifting the aircraft during takeoff. Additionally, the headwind slows down the plane during landing, reducing the need for heavy braking.
Although tetrahedrons are rarely used, it is important for pilots to be able to recognize them and understand the information they display. At some airports, the tetrahedron might be locked to show the preferred runway, and in such cases, pilots should refer to the ASOS/AWOS for accurate wind direction information.
Boston's Logan Airport: A Traveler's Guide to the City
You may want to see also
Explore related products
Windsocks are more commonly used to indicate wind direction and speed
Windsocks are more commonly used than tetrahedrons to indicate wind direction and speed. Pilots usually assume a windsock will be available at every airport to indicate wind direction and intensity. The wide end of a windsock points into the wind, while the narrow end indicates its direction. A windsock is placed next to a runway or helipad so that pilots can easily see it when lined up for takeoff or landing.
Windsocks are also used to determine wind speed. As the wind speed increases, the sock progressively fills and extends. The tapered shape allows for different levels of extension at specific wind speeds. For example, standard FAA aviation windsocks are calibrated to fully extend at a wind speed of 15 knots.
Tetrahedrons are occasionally used as an alternative to windsocks to indicate wind direction. They are rare, but pilots should still be able to recognize them and understand the information they display. As the wind blows, the tetrahedron will shift, pointing into the wind and showing pilots the direction in which they should take off and land. However, tetrahedrons do not indicate wind speed.
San Francisco Airport: A Sprawling Transportation Hub
You may want to see also
Explore related products
Tetrahedrons can be manually set to indicate the preferred runway
Tetrahedrons are a type of wind indicator that can be used at airports to inform pilots of the wind direction. They are considered rare, with windsocks being the more common wind indicator. However, occasionally, airports will utilise a tetrahedron as their wind indicator.
A tetrahedron is a 3D shape with four triangular faces. When used as a wind indicator, the small point of the tetrahedron will point into the wind, indicating the direction from which the wind is blowing. This is because the pointed end of the tetrahedron is more aerodynamic. If the small point is facing northeast, for example, the wind is coming from the northeast and heading southwest.
It is important to note that tetrahedrons should not be relied upon in very light or calm wind conditions as they may not align with the designated calm-wind runway. Additionally, at airports with control towers, the tetrahedron should only be referenced when the control tower is not in operation. Tower instructions take precedence over tetrahedron indications.
Avoiding Airport Security: Tips for a Smooth Journey
You may want to see also
Explore related products
Tetrahedrons are more stable in the wind than windsocks
Tetrahedrons and windsocks are both visual sources of wind direction. However, they function differently. A windsock points in the direction of the wind, whereas a tetrahedron points in the opposite direction, indicating the direction from which the wind is blowing. For example, a windsock pointing north suggests that the wind is blowing north, while a tetrahedron pointing north indicates that the wind is blowing from the north.
Windsocks are also used to indicate wind speed, as they are divided into five segments, each suggesting an approximate wind speed. For instance, when only two segments are extended, the wind speed is approximately 6 knots or 11 km/h. A fully blown windsock implies a wind speed of 15 knots (28 km/h) or more. Tetrahedrons, on the other hand, are unable to indicate wind speed.
Tetrahedrons are considered more stable in the wind than windsocks due to their design and construction. For instance, at Eagles Crest Aerodrome (DE25), the tetrahedron was built using the tail fuselage of a Bell 47 helicopter, with modifications made to increase its stability. These modifications included adding triangular winglets to increase visibility, tabs to the rudder and back of the winglets, and extending the fuselage with aluminium sheets. Iron bars were also bolted to the bottom of the fuselage to provide further support and strength. As a result, the tetrahedron was better able to catch the wind and maintain its stability.
Additionally, tetrahedrons can be designed with the pivot point forward and a counterweight on the nose, making them less prone to swinging around with small gusts. This design feature further contributes to the stability of tetrahedrons in the wind compared to windsocks, which may be more susceptible to movement with changing wind speeds and directions.
While windsocks are more commonly used at airports to meet the requirements of organizations like the International Civil Aviation Organization (ICAO) and the Federal Aviation Administration (FAA), tetrahedrons offer advantages in terms of stability and visibility.
Tampa Airport Hotels: Where to Stay for Easy Access
You may want to see also
Explore related products
Tetrahedrons are constructed using a pivot point and a counterweight
Tetrahedrons, also known as airport wind indicators, are constructed to indicate the direction of the wind to incoming pilots. They are usually located in the infield, across the aircraft parking apron from the terminal building.
The tetrahedron is then installed on a temporary pivot bar to test how and if it will catch the wind. This is done by placing it outside the hangar in a location that does not catch wind deflecting off the hangar. If the tetrahedron is not catching enough wind, modifications can be made, such as adding tabs to the top of the rudder and the back of the winglets, or extending the fuselage. Once the tetrahedron is catching enough wind, it is moved to its permanent location.
The pivot for the tetrahedron is constructed by assembling four threaded rods into a concrete base. A solid pivot is then built to hold the tetrahedron, using a sonotube as a form for pouring concrete into a hole. The tetrahedron is then moved to its final location, where it is placed on a swing rod.
Doha Airport: A Hotel Haven for Weary Travelers
You may want to see also
Frequently asked questions
A tetrahedron is a wind direction indicator that points in the direction from which the wind is blowing. It is also known as an airport wind indicator.
The small end of the tetrahedron points in the direction of landing. When the wind is blowing from the east towards the west, the tetrahedron will point in the direction of the east.
Tetrahedrons are used to aid pilots in determining the direction of the wind during flight operations.
No, tetrahedrons are rarely used. The International Civil Aviation Organization (ICAO) does not recommend using tetrahedrons as wind indicators during airport takeoff and landing operations.
Windsocks, also known as wind cones, are another type of wind indicator that can be used to indicate wind direction and speed.
