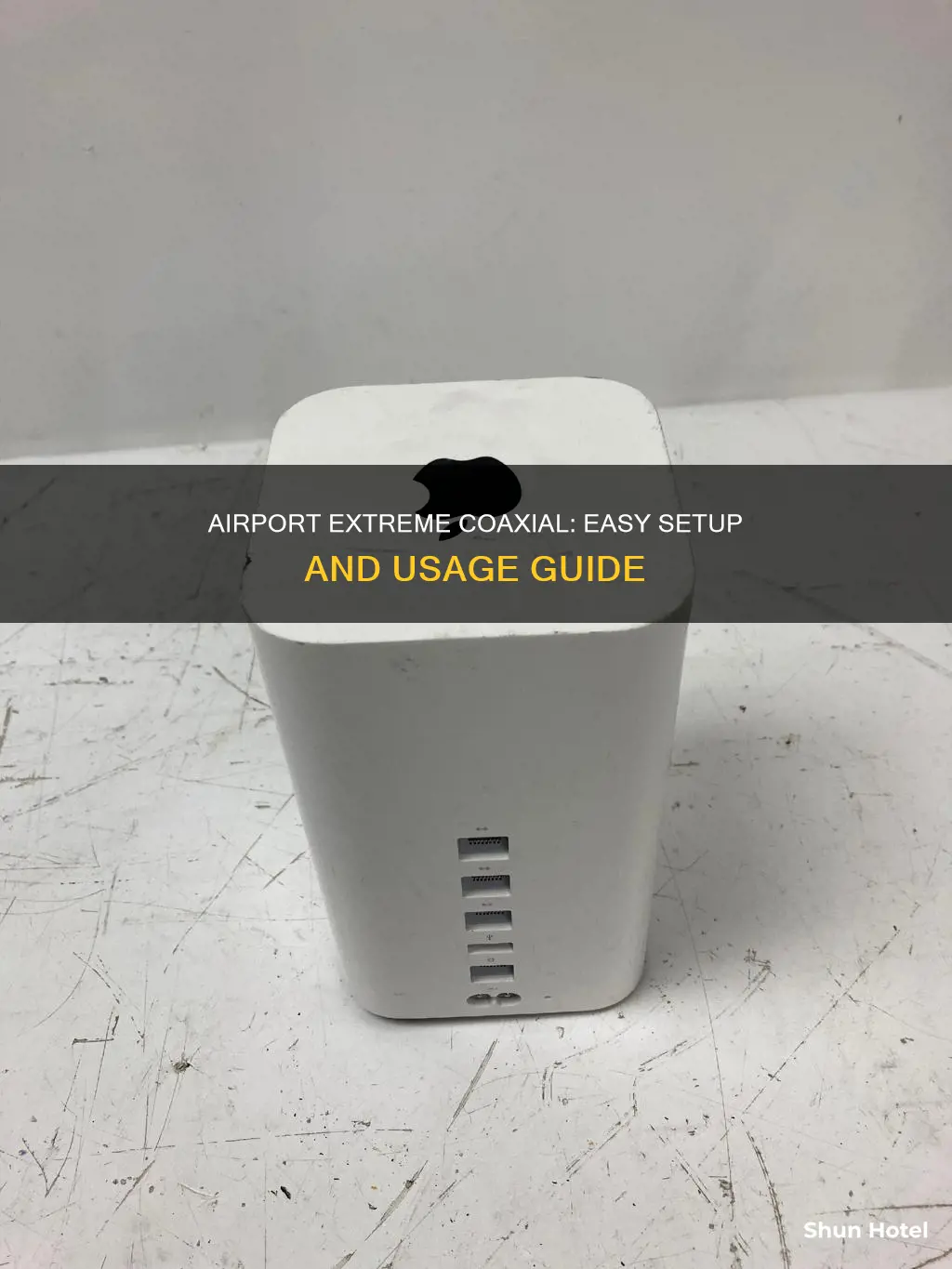

The Apple AirPort Extreme is a router that can be used to set up a fast and secure wireless network in your home or office. It is easy to set up and use, but there are some initial configuration steps required to get a wireless network up and running smoothly. The AirPort Extreme does not have a built-in modem or a coaxial cable connector, so if your internet connection comes via a coaxial cable, you will need to connect it to a modem, which will then provide an Ethernet connection to the AirPort Extreme.
Explore related products
What You'll Learn
Connect to a modem
The AirPort Extreme is a router and does not have a modem on board, so you will need a separate modem to use with it.
Firstly, ensure that your modem is installed with a coaxial cable. This coaxial connection ends at the modem. There is no coaxial connection to your AirPort Extreme router. Instead, an Ethernet connection will be required from your modem to your AirPort Extreme router.
Next, connect your laptop to your AirPort Extreme using an Ethernet cable plugged into one of the AirPort's LAN ports. Make sure your computer is connected only to the AirPort device and not to the network of another router or modem. We recommend turning off Wi-Fi to ensure that you are only connected to your AirPort device.
Then, launch the AirPort Utility software and select AirPort Extreme from the window. Press 'Edit', then select the 'Wireless' tab and find the drop-down menu under 'Network Mode'. Select 'Off' to disable any wireless networks created by your AirPort Extreme. Next, select the 'Network' tab. Under the 'Router Mode' drop-down, select 'Off' (Bridge Mode). This setting means that IP address assignment is passed onto your eero, which you will connect as your primary router. Once done, press 'Update' and your AirPort Extreme will reboot and save your changes.
If you are still having trouble, try unplugging the power cables to your cable modem and your AirPort Extreme. Wait 60 seconds, then plug the cable modem power back in first and wait another 60 seconds. Now do the same with the AirPort Extreme. If you still cannot find your AirPort Extreme, call AppleCare and they will coach you through the process.
Airports in Rhode Island: How Many Are There?
You may want to see also
Explore related products
Set up a wireless network
Setting up a wireless network using an Airport Extreme WiFi router is a straightforward process. Firstly, find a power source in a central location and connect the Airport Extreme. Then, on your iPad, go to Settings, access the WiFi menu, and scroll down to the "Set Up New Airport Base Station" section. You should see the Airport Extreme router listed with a unique serial number. Select the router and create a new network.
In the Airport Extreme menu, select "Advanced", then "DHCP", then "NAT", and finally "Router Mode". Ensure that DHCP and NAT are selected. If not, select them and then press "Done". After this, you will likely receive a status message referring to Double NAT, which can be ignored by sliding the selector on the error dialogue. The configuration is complete when the internet icon turns green.
If you wish to connect the WiFi network to the internet, plug the ethernet cable into the internet port marked with a dotted circle. The setup screen should automatically advance once it detects an internet connection. You can also bypass this step by selecting "Next" and then "Continue Anyway".
To extend the wireless network's reach, place the Airport Express within radio range of the Airport Extreme. Then, use Apple's Airport Utility to configure the Airport Extreme to join the existing network. Power up the Airport Express, open the Airport Utility, click on "Other Wi-Fi Devices", highlight the new Airport Express, and follow the onscreen instructions to accept the default configuration.
Kingston, Jamaica: Airport Hub and Gateway
You may want to see also
Explore related products
Connect to a router
To connect your Airport Extreme to an existing router, you will need to use an Ethernet cable. The Airport Extreme is a router only and does not have a built-in modem, so you will need to connect it to a modem to access the internet.
First, make sure you have a working modem with an active internet connection. You can use a coaxial cable to connect your modem to your internet source, such as a wall outlet or cable box. Then, use an Ethernet cable to connect your modem to the Airport Extreme router. The Ethernet cable should be connected to one of the LAN ports on the Airport Extreme.
If you are using a Mac, you may also need to install the Airport Utility software on your computer. You can find it in Applications > Utilities > Airport Utility, or by using the keyboard shortcut Command + Spacebar and then typing Airport Utility. Follow the on-screen instructions to set up your Airport Extreme router.
If you are having trouble connecting to the internet, you may need to configure your router settings. Open the Airport Utility and click on your Airport Extreme. Go to the Network Tab and click the double-headed arrow under Router Mode. Set it to "Off (Bridged Mode)". Then, go to Wireless and set up your wireless network however you like. All traffic will go through the modem or router that is connected to the Airport Extreme, and it will be forwarded to the internet or other connected devices.
Additionally, you may need to set a link-local address for your Airport Extreme if you are using an Internet Protocol (IP) network. In the IPv4 settings, assign the Airport Extreme an IP address and netmask that is similar to your modem or router's IP address. For example, if your modem's IP address is 192.168.0.1 with a netmask of 255.255.255.0, you can set the Airport Extreme's IP address to 192.168.0.2 with the same netmask.
Postmates Airport Deliveries: What You Need to Know
You may want to see also
Explore related products
Connect to a range extender
To connect to a range extender using an Apple Airport Extreme, you can use a wired or wireless connection.
Wired Connection
Using an Ethernet cable is the recommended method for connecting a range extender to your Airport Extreme. First, connect your primary router to your internet modem. Then, take an additional Airport Extreme or Airport Express device and connect its "WAN" port to the "LAN" port on your primary router.
Wireless Connection
To connect wirelessly, place the range extender within radio range of the primary router. Then, power up the range extender and open the Airport Utility. Click on "Other Wi-Fi Devices", highlight the new device, and follow the on-screen instructions to accept the default configuration.
Using a Non-Apple Range Extender
It is possible to use a non-Apple range extender with an Airport Extreme, but it must be connected via Ethernet. First, set up the non-Apple range extender in bridge mode. Then, connect it to the Airport Extreme via Ethernet. Open the AirPort Utility and set "Connection Sharing" to "Off (Bridge Mode)". Ensure that the network name, security settings, and password are the same on both the primary and secondary devices.
Troubleshooting
If you are experiencing issues with your range extender, you can try connecting to the extender's configuration page. Plug in the extender and connect your device to it using the default password, which can usually be found in the product documentation. Then, open a web browser and type in the extender's IP address (e.g. http://extender.linksys.com or 192.168.1.1). This will allow you to access the configuration page and follow the on-screen instructions to connect.
Exploring BWI Airport's Vast Acreage
You may want to see also
Explore related products
Restart the Airport Extreme
To restart your Airport Extreme, you will need to reset the device. This can be done in several ways, depending on the model of your Airport Extreme base station and the situation you are in.
Firstly, ensure your device's firmware is up to date. Then, locate the reset button on the base station, usually found next to the ports.
If you are looking to perform a soft reset, which resets the base station password and disables security for 5 minutes, follow these steps:
- Open the AirPort Utility, found in the Utilities folder of your Applications folder.
- Click on the "Other Wi-Fi Devices" button and select your base station from the list.
- Click "Edit", then "Other Options".
- Click "Restore previous settings" and then click "Next" until you reach the final window.
- Once the AirPort Utility indicates that the setup is complete, click "Done".
For a hard reset, which returns the base station to an unconfigured state but retains the last saved configuration, you can try the following:
- Power off the Airport Extreme and disconnect it from power.
- Hold the reset button and simultaneously plug the power cord back into the device.
- Continue holding the reset button for about 5-6 seconds and then release.
If you are looking to perform a factory reset and return your Airport Extreme to its default settings, you can try the following:
- Power off the Airport Extreme and leave it off for about a minute or two.
- Hold the reset button and plug the power cord back into the device.
- Keep holding the reset button for about 5-6 seconds and then release.
- Reconfigure the base station using the AirPort Utility.
Note that for both a hard reset and a factory reset, you will need to use the AirPort Utility to set up and reconfigure the Airport Extreme.
Unleashing the Airport in Civ 5: Strategies and Secrets
You may want to see also
Frequently asked questions
Unbox the AirPort Extreme and plug it in. There is no on/off switch, so it will automatically turn on when you plug it in.
Purchase a Cat5 ethernet cable and use it to connect the AirPort Extreme to your DSL or cable modem. Plug the cable into the AirPort Extreme’s Internet WAN port (it has a little O symbol above it).
Yes, you need a modem. The AirPort Extreme routers do not have built-in modems. Contact your Internet Service Provider (ISP) for a list of compatible modems.
No, the AirPort Extreme does not have a coaxial cable connector. You will need to connect the coaxial cable to a modem, and the modem will provide an Ethernet connection to the AirPort Extreme.
You will need to install the Airport Utility software on your computer. You can download it from apple.com/support/airport.
