The Airport Time Capsule is a device that allows users to back up their Mac devices wirelessly. However, Apple has discontinued the production of this device, leaving users to find alternative solutions. There are several options for replacing the Airport Time Capsule, including purchasing a modern Wi-Fi router with a USB3 port, a Synology RT2600ac wireless router, or a Western Digital My Cloud Home device. Additionally, users can opt to upgrade their system to a mesh wireless system or explore Networked Attached Storage (NAS) solutions, such as those offered by Synology. For those comfortable with hardware modifications, it is also possible to replace the hard drive within the Airport Time Capsule to extend its lifespan.
How to Replace Airport Time Capsule
| Characteristics | Values |
|---|---|
| Before Replacing | Erase and restore the Time Capsule to Apple factory settings using the AirPort Utility app on your Mac. |
| Replacement Options | 1. Buy a Synology RT2600ac wireless router and connect an appropriately-sized hard drive. |
| 2. Replace the Time Capsule's Wi-Fi router functionality by buying an Eero Pro. | |
| 3. Replace the Time Machine backup storage functionality by buying a Synology NAS and plugging it into one of the ethernet ports on your Eero Pro. | |
| 4. Connect an external hard drive to your Mac and use the Time Machine Destination feature in macOS 10.13 High Sierra or newer to set up a shared folder. | |
| 5. Connect an external WD (or similar) 2-4 TByte HD to the USB port on the back of the Time Capsule. | |
| 6. Western Digital My Cloud Home is a wireless replacement option. | |
| 7. Swap the hard drive in a Time Capsule A1470 from the original 2TB Seagate drive to a 6TB WD drive. |
Explore related products
What You'll Learn
Time Capsule alternatives
Apple no longer sells Time Capsules, and there is no direct substitute that can function as both a backup device and a router. However, there are several alternatives that can be used to achieve the same results.
One option is to purchase a modern Wi-Fi router with a USB 3.0 port, such as the Asus RT2900 router, and attach an external storage drive, such as a Solid-State Drive (SSD). This setup will allow for automatic wireless backups from your laptop.
Another option is to use a Network Attached Storage (NAS) device, such as the Synology DS120J or DS220J. NAS devices are miniature, multipurpose servers that can be used for storage and backup. However, setting up a NAS device for network Time Machine use may require some technical skill. One NAS device that is known for its ease of setup is the Western Digital My Cloud Home, which can be set up as a preconfigured Time Machine Drive by creating an account with Western Digital.
Additionally, you can set up a Time Capsule without attaching it to a router by using AirPort Utility v5.6.1 Launcher from ZCS. This will allow you to back up to a Time Capsule even when you don't have access to a router or a wired network jack.
Finally, if you are looking for a standalone SSD solution, you can consider retiring your Time Capsule and upgrading to a mesh wireless system. This will provide you with a more flexible and scalable storage option, but you will need to research how this will fit into your current setup.
Tampa's Two Airports: A Traveler's Guide to the City's Aviation Hubs
You may want to see also
Explore related products

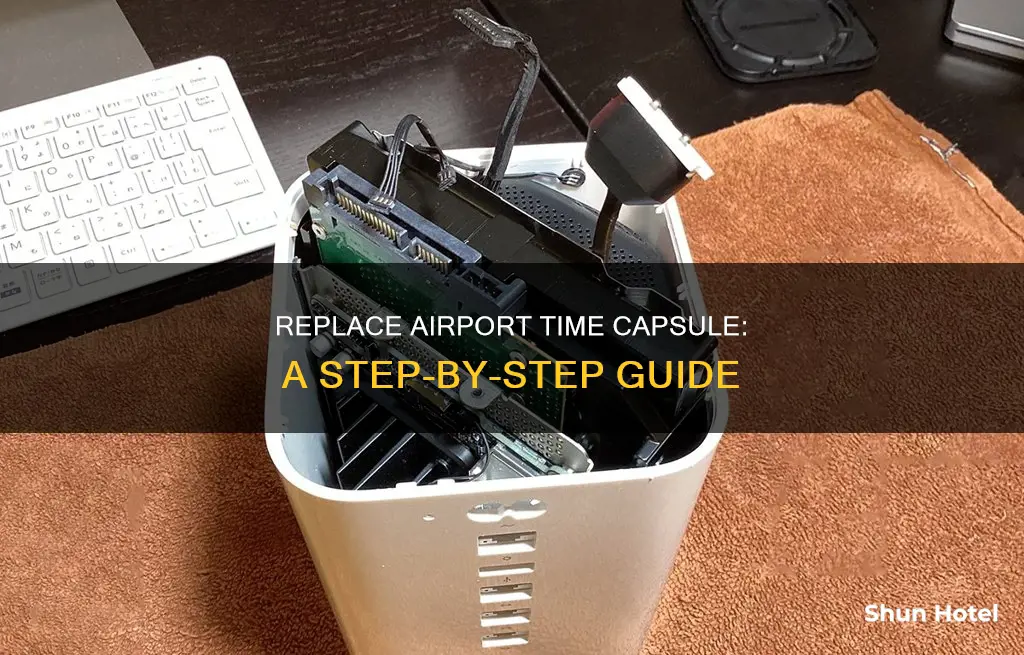

Replacing the hard drive
To replace the hard drive of an Airport Time Capsule, you will need to carefully remove the old drive and disconnect the cables before installing a new drive. Here is a step-by-step guide for replacing the hard drive:
Prepare Your Workspace:
Place a piece of cloth or a soft material on a clean, flat surface. This will protect your device during the replacement process. Place the Airport Time Capsule upside down on the prepared surface.
Open the Airport Time Capsule:
The screws that hold the device together are concealed by the rubber base, which is the bottom surface of the device. Use a heat gun or hair dryer to gently heat the rubber base, softening the adhesive. Starting from a corner, carefully lift the rubber base with a tool like a guitar pick or a small plastic ruler to avoid tearing. Be cautious not to overheat the device.
Remove the Old Hard Drive:
Before removing the hard drive, detach the temperature sensor mounted on it. Gently peel off the protective foam and set the sensor aside. Lift the old hard drive out of the device. If your model has spacers, use a Phillips #00 screwdriver to remove them. You may need to unscrew the spacers a few turns if your new hard drive is thinner to ensure a snug fit.
Disconnect and Connect Cables:
Disconnect the SATA cables from the old hard drive. Pay attention to the delicate cable connectors, and gently detach them from the PCB. Some models, like the A1470, have three thin cables that require careful handling. The largest cable usually comes away without much trouble, while the smaller connectors need to be pulled directly away from the PCB.
Install the New Hard Drive:
Prepare the new hard drive by attaching the temperature sensor in the same position as on the old drive. Secure it with the foam and adhesive tape if necessary. Slide the new hard drive into place, ensuring it sits properly in the rubber segments. Be cautious not to catch any cables during this step.
Reassemble the Device:
Once the new hard drive is in place, carefully reconnect the cables to the PCB. Reattach the metal plate using the screws you removed earlier. Trim the rubber pad if necessary to accommodate the new drive. Finally, clip the black plastic base back on to close the unit.
Test the New Hard Drive:
After physical replacement, launch the Airport Utility to check if the new disk is recognized. If necessary, erase the disk and set it up for use.
Please note that replacing the hard drive in an Airport Time Capsule can be challenging, especially with the delicate cables and connectors. Take your time and follow the instructions carefully to avoid damage.
LAX Airport's Best Eateries: A Comprehensive Guide
You may want to see also
Explore related products
Using an external hard drive
The Airport Time Capsule is a wireless router device manufactured and sold by Apple Inc. It is a residential gateway router featuring network-attached storage (NAS). Apple describes this device as a "Backup Appliance". It is not an external hard drive, but you can use it as a hard drive.
If you want to use an external hard drive with your Time Capsule, Apple recommends that you have a disk with at least twice the space of the drive you are backing up. For example, for a 1TB hard drive, you will need a 2TB external drive.
You can set up your old Airport Extreme Time Capsule as a Time Machine hard drive. This will allow you to save your Mac computer's Time Machine backups to the Airport Extreme hard drive wirelessly when connected to your home network.
To set up your old Airport Extreme Time Capsule as a Time Machine hard drive, you will need to disable the WiFi part of the Airport Extreme and put it in "Bridge" mode. This will allow you to use the disk part wirelessly for Time Machine. You will need an ethernet cable to connect your computer to the Airport Extreme.
If you are using a mesh network such as eero, you can find step-by-step instructions on how to set up your old Airport Extreme Time Capsule as a Time Machine hard drive on the eero website.
Newark Airport: Airlines Operating from the Hub
You may want to see also
Explore related products
Wireless router options
Modern Wi-Fi Routers: You can opt for a modern Wi-Fi router with a USB 3.0 port, which allows you to attach an external storage drive. This setup provides automatic wireless backups and can be a good replacement for your old Airport Time Capsule. For example, you can consider the TP-Link WiFi 6 Router, AX3000 Dual-Band WiFi Router, and pair it with a portable external solid-state drive like the Samsung T7 Shield.
NAS (Network-Attached Storage) Devices: Another option is to go for a NAS device, which can provide similar functionality to the Time Capsule. Examples include the Synology DS120J or DS220J. These devices offer wireless backup solutions and can be a good alternative to traditional routers.
Wi-Fi Mesh Systems: If you want seamless whole-home Wi-Fi coverage, a Wi-Fi mesh system might be ideal. While it may be more expensive, it offers easy setup and ensures that you don't have to switch between different wireless networks within your home. Newer Wi-Fi mesh systems combine Wi-Fi 6 and mesh technology, providing a simple and effective solution for blanket wireless coverage.
Optimisation Settings: Regardless of the router you choose, there are several optimisation settings you can tweak to improve your wireless signal, performance, and speed. These settings may vary depending on your router model, but here are some general options:
- 2.4 GHz vs 5 GHz: 2.4 GHz offers slower speeds but more range, while 5 GHz provides faster speeds with less interference.
- 20 MHz or 40 MHz: 20 MHz is used for 2.4 GHz wireless frequency, while 40 MHz is for 5 GHz.
- AP Isolate: Enable for public Wi-Fi and disable for home Wi-Fi.
- IP Flood Detection: Enable if your network is infected with malware that overloads your Wi-Fi.
- Preamble Type: Short for a faster connection, and long for a slower but more stable connection in noisy environments.
- Beacon Interval: A lower value is typically the default setting, but a higher value can provide more free bandwidth and better performance.
- QoS (Quality of Service): This feature allows you to see how your total bandwidth is distributed by device and prioritise certain services or devices.
- Guest Network: You can set up a guest network to keep your personal data and files secure while providing open access to guests.
Uber in Montreal Airport: Available or Not?
You may want to see also
Explore related products
Erasing and restoring
If you are looking to erase and restore your Apple Airport Time Capsule, there are a few steps you should follow. Firstly, open the AirPort Utility app on your Mac. This can be found in the Utilities folder within the Applications folder. Once the app is open, you will see a graphical overview. Here, select the Time Capsule you wish to erase and click 'Edit'.
You may be asked to enter a password at this point. Once you have accessed your Time Capsule, click on 'Disks' and then 'Erase Disk'. From here, you will be able to select a security method. There are a few options to choose from, depending on how secure you want the erase to be. 'Quick Erase' will simply erase the directory information, meaning data can still be accessed until it is overwritten. 'Zero Out Data' will write zeros over your data, ensuring it cannot be recovered.
Once you have selected your security method, click 'Erase'. This will restore your Time Capsule to Apple's factory settings. If you are planning to give away or sell your Time Capsule, it is important to perform this erase function first to protect your data.
In addition to erasing your Time Capsule, you may also be interested in physically replacing the hard drive. This process is a little more complex, requiring tools such as spudgers, screwdrivers, and tweezers. The base of the Time Capsule is held in place by plastic retention lugs, which can be carefully unclipped using a spudger. Once the base is removed, the hard drive can be pulled out and replaced with a new one. It is important to note that the rubber segments that hold the drive in place will likely need to be trimmed to fit a new drive, so take care when removing and reattaching these.
Tampa's Airports: A Comprehensive Guide to Air Travel
You may want to see also
Frequently asked questions
Apple no longer sells Time Capsules, but there are several replacement options available. You can either buy a multi-terabyte hard drive or a dual-hard-drive system that lets you set up a RAID 1 mirror. Alternatively, you can buy a Synology RT2600ac wireless router and connect a hard drive to it. If you want to keep using your Time Capsule WI-FI, you can connect an external WD (or similar) 2-4 TByte HD to the USB port on the back of the Time Capsule.
Some alternatives to the Airport Time Capsule include the Western Digital My Cloud Home, the Exos X16 NAS HD, and the Synology DS120J or DS220J.
Before giving away your Time Capsule, make sure to erase and restore it to Apple factory settings. Open the AirPort Utility app on your Mac, located in the Utilities folder in the Applications folder. Select the base station you want to reset and click Edit. You may need to enter a password for the base station. Then, follow the steps in Erase an AirPort Time Capsule and choose Base Station > Restore Default Settings.
To replace the hard drive in your Airport Time Capsule, you will need a few tools, including metal and plastic spudgers, a Torx T8 screwdriver, and tweezers. First, remove the base by sliding a thin spudger between the base and the body to gently prise the edge. Once one side is unclipped, work gradually around the perimeter until the base comes off. Then, pull out the old drive, trim the rubber segments, and slide the new drive into place, making sure no cables get caught.
