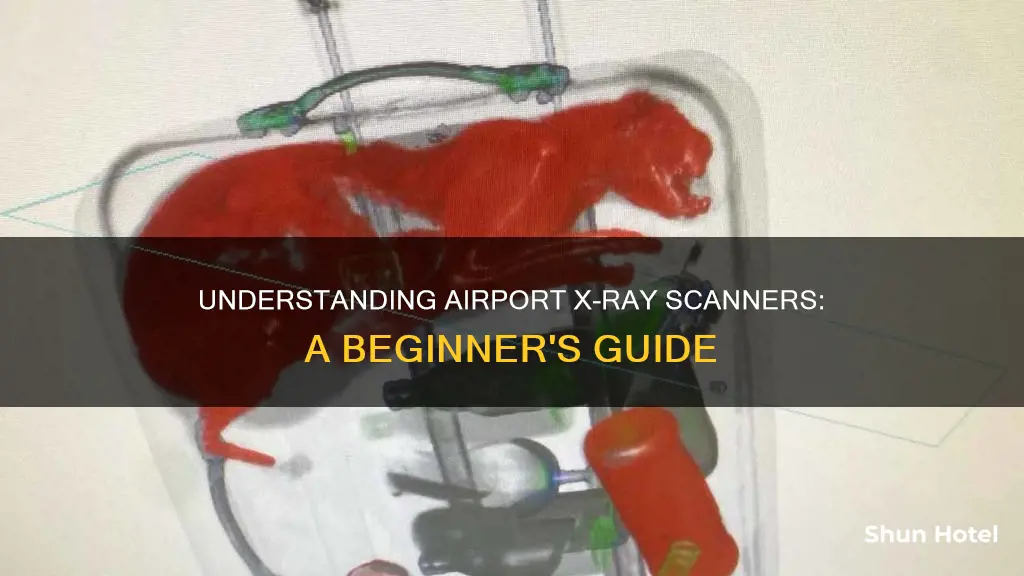

X-ray baggage scanners are an essential tool in modern airport security systems. They produce colour-coded images of the contents within luggage, which security personnel must then analyse to identify potential threats. Interpreting these X-ray images correctly is crucial for maintaining airport security and ensuring the safety of passengers. This guide will explore the key aspects of reading airport X-rays, including colour coding, threat identification, and the importance of training and vigilance for security personnel.
| Characteristics | Values |
|---|---|
| Purpose | To identify potential threats and anomalies |
| Method | X-rays are passed through luggage to generate colour-coded images on a monitor |
| Training | X-ray operators receive ongoing training to stay adept at reading scanner images |
| Colours | Different colours represent different types of materials; blue indicates dense materials like metal, hard plastic or alloys, green indicates plastic, and red indicates light materials like fabric, carton or paper |
| Outline | Objects inside luggage may appear tilted at odd angles, so operators must be able to identify outlines |
| Threats | X-ray operators look for items that could be used as weapons or components of an improvised explosive device (IED) |
Explore related products
What You'll Learn
- X-ray systems use colours to identify organic, inorganic and mixed substances
- Shades of orange represent organic material, as most explosives are organic
- Blue indicates dense material, like metal, hard plastic or alloy
- Red indicates light material, like fabric, carton or paper
- Green usually means plastic
X-ray systems use colours to identify organic, inorganic and mixed substances
X-ray systems use colours to identify organic, inorganic, and mixed substances. This colour-coding system is crucial for efficient and accurate luggage inspection. Security personnel must undergo constant training to stay adept at reading scanner images.
Organic materials, such as food, clothing, paper, wood, and plastics, appear as orange on the scanner. This is because organic materials have lower atomic numbers and densities compared to inorganic substances, resulting in less absorption of X-rays, which produces an orange hue on the screen. Recognising organic materials is essential as most explosives belong to this category.
Inorganic materials, on the other hand, are typically blue. Metals, minerals, and man-made materials fall into this category. Inorganic substances have higher atomic numbers and densities, causing them to absorb X-rays more efficiently and appear blue. Identifying the blue colour is crucial in differentiating between harmless and potentially dangerous objects, such as weapons or explosives, which are often made from inorganic materials.
Mixed substances, which are a combination of both organic and inorganic components, show up as green on the scanner. The colours blend to create a green hue, indicating the presence of complex items that may require closer inspection. Examples of mixed substances include aluminium, silicon, glass, and gunpowder.
It is important to note that the colours in airport security X-ray images may vary depending on the machine's manufacturer and version. Additionally, the brightness of the colours plays a role, with darker shades indicating higher-density materials.
Athens International Airport: A Gateway to Greece's Ancient Capital
You may want to see also
Explore related products
Shades of orange represent organic material, as most explosives are organic
When it comes to airport security, X-ray technology plays a crucial role in ensuring the safety of passengers and staff. By using X-ray scanners, security personnel can detect prohibited items, such as weapons, explosives, and contraband. One of the key aspects of interpreting X-ray images is understanding the colour coding system.
The colours in airport security X-ray images can vary depending on the machine and the manufacturer. However, one consistent colour coding is the use of shades of orange to represent organic materials. This is because most explosives are organic, and the use of orange helps operators identify potential threats.
Organic materials, such as paper, wood, clothing, foodstuffs, plastics, and explosives, will typically appear as shades of orange on the X-ray image. The darkness of the orange shadow depends on the thickness of the material. For example, a dense item like a book will appear as a darker orange than a thinner piece of paper.
It is important to note that explosives may not always appear orange if they are mixed with inorganic materials. In such cases, the colour shown on the X-ray will be a composite of the two materials. For instance, if an explosive is mixed with metal, the resulting colour may be greener due to the inorganic component.
To become adept at interpreting X-ray images, operators must undergo training to familiarise themselves with the various colours and their meanings. They learn to identify not only obvious threats like guns or knives but also components that could be used in improvised explosive devices (IEDs). This skill is crucial in ensuring the security and protection of everyone at the airport and on the aircraft.
Stewart Airport: Bar Availability and Amenities
You may want to see also
Explore related products
Blue indicates dense material, like metal, hard plastic or alloy
Blue is one of the colours that appear on airport X-ray scanners. The blue colour indicates the presence of inorganic substances, which are typically dense materials such as metal, hard plastic or alloy. Inorganic substances often have higher atomic numbers than organic substances, causing them to absorb X-rays more efficiently and appear blue on the screen.
It is important to be able to recognise the blue colour to quickly identify potentially dangerous items such as weapons or explosives, which are often made from metal or other inorganic materials. The blue colour always indicates that the X-ray "recognises" the material as being very dense. For example, a gun and bullets would appear as dark blue on the scanner, clearly suggesting that the pistol is genuine.
The brightness of the colours on the scanner correlates with the thickness of the material. Thicker materials will appear brighter due to higher absorption levels of X-rays, while thinner materials will be less bright. Textures and patterns also play a crucial role in interpretation. For instance, evenly coloured objects usually indicate a single type of material.
It is worth noting that the colours used to represent categories of substances may vary between manufacturers. However, the underlying principles stay the same. For example, all X-ray systems use shades of orange to represent organic substances because most explosives are organic.
Orlando's Airport Options: How Many Are There?
You may want to see also
Explore related products
Red indicates light material, like fabric, carton or paper
X-ray images at airport security can be confusing to the untrained eye. However, the underlying principles are quite simple. X-rays highlight the difference in density of various materials. The denser the material, the bluer the image; the lighter the material, the redder the image. Red, therefore, indicates a light material, such as fabric, carton, or paper.
Red on an X-ray image means that the X-ray beam has encountered very little or no resistance when penetrating the object. This suggests that the object is made of fabric or another very light material such as carton or paper.
While the colours used to signify "inorganic" and "metal" may vary between manufacturers, all X-ray systems use shades of orange to represent "organic". This is because most explosives are organic. Machine operators are trained to look for anything that could be a component of an improvised explosive device (IED).
The brightness of the colours on the scanner correlates with the thickness of the material. Thicker materials will appear brighter due to higher absorption levels of X-rays. Textures and patterns also play a crucial role in interpretation. Uniformly coloured objects usually indicate a single type of material, whereas mixed colours or uneven textures might suggest complex items like electronics or composite materials.
Transit Visa Requirements at Narita Airport: What You Need to Know
You may want to see also
Explore related products
Green usually means plastic
Plastic is organic, and it is often found in combination with inorganic materials, such as metal. This combination of materials is common in everyday items like electronics. For example, laptops and smartphones have plastic parts (organic) and metal circuits (inorganic). Other examples of mixed substances include batteries, which contain both chemical compounds (organic) and metal casings (inorganic), and composite materials like fiberglass or carbon fiber, which are constructed from a combination of organic resins and inorganic fibers.
The brightness of the colors on the scanner correlates with the thickness of the material. Thicker materials will appear brighter due to higher absorption levels of X-rays, while thinner materials will be less bright. So, the brighter the green, the thicker the plastic.
The colors in airport security X-ray images will vary a little depending on the version of the machine and, most of all, the manufacturer. Despite these variations, all X-ray systems use shades of orange to represent organic materials because most explosives are organic. Machine operators are trained to look for suspicious items—and not just obviously dangerous items like guns or knives, but also anything that could be a component of an improvised explosive device (IED).
Golden, Colorado: Airport Access and Travel Options
You may want to see also
Frequently asked questions
All X-ray systems use shades of orange to represent organic material, as most explosives are organic. The bluer the colour, the denser the item, so blue indicates metal, hard plastic or an alloy. Green usually means plastic, and red indicates fabric or another very light material.
Misreading an airport X-ray can lead to missed threats, which could put passengers in danger. It can also cause unnecessary delays if innocuous items are mistaken for threats.
To learn how to read an airport X-ray, you should study various X-ray images of items such as guns, knives and improvised explosive devices at different angles. You should also familiarise yourself with the different categories of items and the colours that represent them.
One of the main challenges of reading an airport X-ray is the variety of colours used by different manufacturers. Another challenge is that objects inside luggage may be tilted at odd angles, making them harder to identify.
