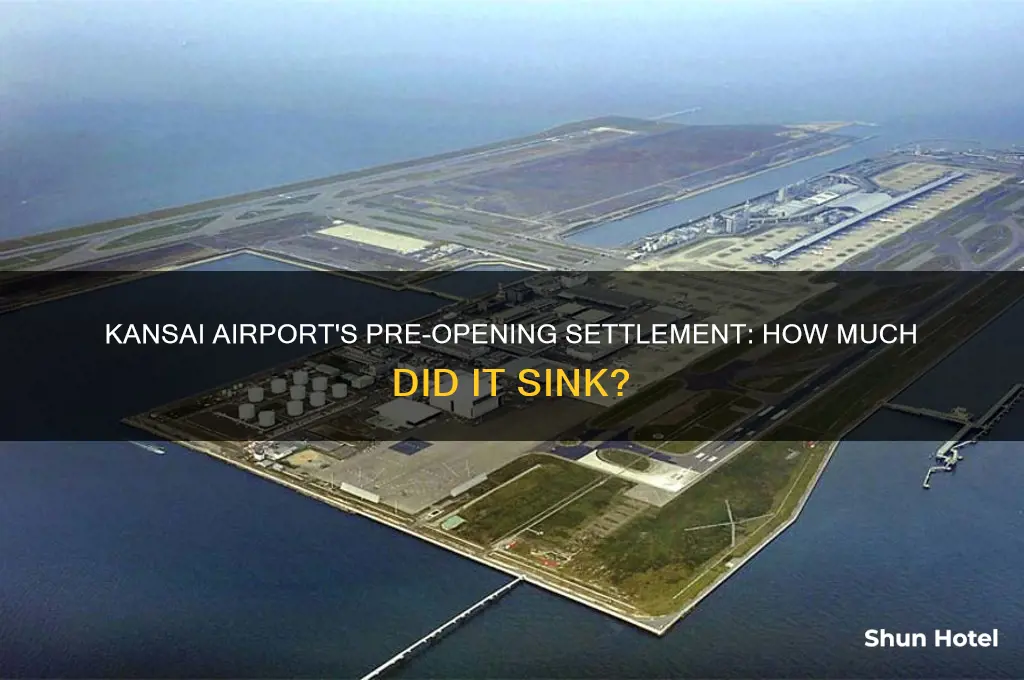

Kansai International Airport, a marvel of modern engineering, faced significant challenges before its opening day on September 4, 1994. Built on a man-made island in Osaka Bay, the airport was designed to alleviate congestion at Osaka International Airport. However, the soft, reclaimed land beneath the airport led to unexpected settling issues. By the time of its inauguration, Kansai Airport had already settled approximately 8 meters (26 feet) more than initially anticipated, raising concerns about its long-term stability and structural integrity. This settling phenomenon became a critical topic of discussion, highlighting the complexities of constructing such a massive infrastructure project on unstable ground.
| Characteristics | Values |
|---|---|
| Airport Name | Kansai International Airport (KIX) |
| Location | Osaka Bay, Japan |
| Opening Date | September 4, 1994 |
| Total Settlement Before Opening | Approximately 8 meters (26 feet) |
| Construction Period | 1987–1994 |
| Land Reclamation | 5.7 square kilometers (2.2 square miles) of artificial island created |
| Cost of Construction | Approximately ¥1.5 trillion (about $13 billion at the time) |
| Design Feature | Built on soft marine clay, requiring advanced engineering solutions |
| Settlement Mitigation Measures | Use of deep foundation piles and advanced ground improvement techniques |
| Current Status | Operational, with ongoing monitoring for settlement and maintenance |
Explore related products
What You'll Learn
- Initial Settlement Predictions: Early estimates of Kansai Airport's land subsidence before construction began
- Actual Settlement Data: Measured land subsidence figures recorded during and post-construction phases
- Engineering Solutions: Techniques used to mitigate and manage the airport's settlement issues
- Opening Day Impact: How much the airport had settled by the official opening date
- Long-Term Monitoring: Ongoing settlement tracking and maintenance efforts post-opening
Initial Settlement Predictions: Early estimates of Kansai Airport's land subsidence before construction began
Before the construction of Kansai International Airport (KIX) in Japan, extensive studies were conducted to predict the potential land subsidence due to the airport's unique location on reclaimed land in Osaka Bay. Initial settlement predictions were a critical aspect of the planning phase, as the soft, compressible soil layers beneath the seabed posed significant engineering challenges. Early estimates suggested that the land could settle by several meters over time, necessitating innovative design solutions to ensure the airport's long-term stability. These predictions were based on geological surveys, soil testing, and historical data from similar reclamation projects in the region.
Geotechnical experts initially forecasted that the reclaimed island would experience up to 3 meters of settlement before the airport's opening day. This estimate was derived from the high water content and low shear strength of the seabed soil, primarily composed of silty clay and sand. The weight of the artificial island and its structures was expected to compress these layers, leading to gradual subsidence. Engineers also considered the potential impact of tectonic activity and groundwater extraction, which could exacerbate settlement. These early predictions underscored the need for a resilient foundation system capable of accommodating movement without compromising structural integrity.
To address the anticipated settlement, the airport's design incorporated advanced engineering techniques, such as the use of deep foundation piles driven into harder soil strata beneath the seabed. Additionally, a system of drainage pipes was installed to reduce excess pore water pressure and minimize subsidence. Despite these measures, the initial predictions served as a cautionary benchmark, guiding the construction process and informing contingency plans. The estimates were continuously refined as more data became available during the reclamation and building phases.
Another factor influencing the initial settlement predictions was the rate of subsidence over time. Early models suggested that the majority of the settlement would occur within the first few years after reclamation, with a slower rate of subsidence continuing thereafter. This understanding allowed engineers to plan for phased construction, ensuring that critical infrastructure, such as runways and terminals, could be built on more stable ground. The predictions also highlighted the importance of ongoing monitoring to track actual settlement and adjust strategies as needed.
In summary, initial settlement predictions for Kansai Airport indicated significant land subsidence, with early estimates ranging up to 3 meters before the airport's opening. These forecasts were grounded in thorough geotechnical analysis and informed the development of cutting-edge engineering solutions. While the actual settlement exceeded these initial estimates, the predictive models played a vital role in mitigating risks and ensuring the airport's successful construction and operation. The lessons learned from Kansai Airport continue to influence the design of large-scale reclamation projects worldwide.
Is FLL Airport Open? Current Status and Travel Updates Explained
You may want to see also
Explore related products
Actual Settlement Data: Measured land subsidence figures recorded during and post-construction phases
The construction of Kansai International Airport (KIX) on a man-made island in Osaka Bay presented significant geotechnical challenges, particularly concerning land subsidence. Actual settlement data collected during and after construction reveal the extent of this phenomenon. Initial measurements indicated that the airport’s foundation, primarily composed of reclaimed land and soft marine clay, experienced substantial settlement even before the airport’s opening in 1994. Precise monitoring systems recorded that the island had settled by approximately 3 meters (9.8 feet) during the construction phase. This settlement was largely attributed to the consolidation of the soft clay layers under the weight of the artificial island and airport structures.
Post-construction monitoring continued to track land subsidence, providing critical data for long-term stability assessments. By the time of the airport’s inauguration, additional settlement had occurred, bringing the total subsidence to around 5 meters (16.4 feet) since the start of the project. This figure exceeded initial engineering estimates, prompting adjustments to the airport’s design and operational plans. The data highlighted the dynamic nature of the reclaimed land and the ongoing challenges of maintaining infrastructure on such a site.
During the first decade of operation, further settlement was observed, albeit at a slower rate. Measurements indicated an additional 1 to 2 meters (3.3 to 6.6 feet) of subsidence, bringing the cumulative total to 6 to 7 meters (19.7 to 23 feet) since construction began. This continued settlement necessitated periodic adjustments to the airport’s facilities, including the extension of connecting bridges and the reinforcement of structures to accommodate the shifting foundation. The actual settlement data underscored the importance of continuous monitoring and adaptive engineering in managing such a complex project.
To address the subsidence, engineers implemented mitigation measures, including the installation of drainage systems to accelerate consolidation and the use of lightweight materials in construction. Despite these efforts, the measured settlement figures remained a critical factor in the airport’s maintenance and operational strategies. The data collected during and post-construction phases provided invaluable insights into the behavior of reclaimed land under heavy loads, informing future projects in similar environments.
In summary, the actual settlement data for Kansai Airport revealed a total subsidence of 6 to 7 meters from the start of construction to the post-opening period. These measured figures were instrumental in understanding the challenges posed by building on soft marine clay and in developing strategies to ensure the airport’s long-term viability. The detailed records of land subsidence during and after construction remain a cornerstone of geotechnical engineering case studies, illustrating both the complexities and solutions associated with such ambitious infrastructure projects.
Is Puno Airport Open? Current Status and Travel Updates Explained
You may want to see also
Explore related products
Engineering Solutions: Techniques used to mitigate and manage the airport's settlement issues
The Kansai International Airport, built on reclaimed land in Osaka Bay, faced significant settlement challenges due to the soft, compressible soil beneath it. Before its opening day, the airport had settled approximately 3 meters, far exceeding initial estimates. This unprecedented settlement posed critical risks to the airport’s structural integrity and operational viability. To mitigate and manage these issues, engineers employed a combination of innovative and proven techniques, ensuring the airport’s long-term stability and functionality.
One of the primary engineering solutions was the use of deep foundation systems, specifically piled foundations. Given the soft soil conditions, standard shallow foundations were insufficient to support the massive weight of the airport structures. Engineers drove thousands of steel and concrete piles deep into the more stable layers beneath the seabed. These piles transferred the load of the airport’s buildings and runways to firmer ground, reducing the risk of further settlement. The piles were designed to withstand both vertical and lateral forces, ensuring stability even under extreme conditions such as earthquakes and typhoons.
Another critical technique was the implementation of ground improvement methods, particularly sand compaction piles. This method involved driving hollow pipes into the soft soil, injecting sand to create compacted columns that improved the soil’s bearing capacity and reduced compressibility. The sand compaction piles not only minimized settlement but also enhanced the overall stability of the reclaimed land. This technique was particularly effective in areas where the soil was highly organic and prone to consolidation under load.
To monitor and manage ongoing settlement, engineers installed an advanced settlement monitoring system. This system utilized a network of sensors and GPS stations to continuously track ground movement across the airport. Real-time data allowed engineers to identify areas of excessive settlement and take corrective measures promptly. Additionally, the monitoring system provided valuable insights into the long-term behavior of the reclaimed land, enabling proactive maintenance and adjustments to infrastructure designs.
Finally, structural flexibility was incorporated into the airport’s design to accommodate residual settlement. Buildings and runways were constructed with expansion joints and flexible connections, allowing them to adjust to ground movement without sustaining damage. This approach ensured that the airport could remain operational even as the land continued to settle gradually over time. By combining these engineering solutions, the Kansai International Airport successfully mitigated its settlement issues, setting a benchmark for the construction of large-scale infrastructure projects on challenging terrain.
Is Redmond Oregon Airport Open? Current Status and Updates
You may want to see also
Opening Day Impact: How much the airport had settled by the official opening date
The Kansai International Airport, an engineering marvel built on a man-made island in Osaka Bay, faced significant challenges due to land subsidence before its official opening on September 4, 1994. By the opening day, the airport had already settled more than initially anticipated, raising concerns about its long-term stability. Reports indicate that the island had sunk approximately 8.3 meters (27 feet) since construction began in 1987, with a substantial portion of this settlement occurring before the airport became operational. This unexpected subsidence was primarily attributed to the soft reclaimed land and the weight of the massive airport structures.
Engineers had predicted some degree of settlement, but the rate and extent exceeded projections, prompting urgent measures to mitigate further sinking. By the opening date, the airport had settled about 3.5 meters (11.5 feet) more than the original design had accounted for. This discrepancy forced authorities to accelerate plans for countermeasures, including the installation of additional compacted layers of sand and the use of advanced drainage systems to stabilize the ground. Despite these efforts, the settlement had already impacted the airport’s infrastructure, necessitating adjustments to ensure safety and functionality.
The settlement by opening day had tangible operational implications. For instance, the runways and taxiways required re-leveling, and the terminal buildings needed structural modifications to accommodate the uneven sinking. The airport’s designers had incorporated flexibility into the structures, but the extent of the settlement tested these limits. By the time the airport opened, significant resources had been allocated to address these issues, ensuring that operations could commence without compromising safety. However, the settlement remained a critical concern for long-term maintenance and sustainability.
Public and industry scrutiny intensified as the settlement figures became widely known. Critics questioned the feasibility of building such a massive airport on reclaimed land, while supporters highlighted the innovative engineering solutions employed to address the challenges. By opening day, the airport had become a symbol of both human ingenuity and the unpredictable forces of nature. The settlement data served as a crucial case study for future projects, emphasizing the importance of thorough geological assessments and adaptive design in large-scale infrastructure development.
In conclusion, by its official opening date, Kansai International Airport had settled approximately 3.5 meters more than initially planned, totaling over 8 meters of subsidence since construction began. This settlement had significant operational, financial, and engineering repercussions, requiring immediate and long-term solutions. Despite these challenges, the airport opened as scheduled, showcasing resilience and adaptability in the face of unforeseen geological obstacles. The lessons learned from Kansai’s settlement continue to influence airport construction and land reclamation projects worldwide.
Is New Bern Airport Open? Current Status and Updates for Travelers
You may want to see also
Long-Term Monitoring: Ongoing settlement tracking and maintenance efforts post-opening
The Kansai International Airport, built on reclaimed land in Osaka Bay, faced significant settlement challenges even before its opening in 1994. Initial estimates indicated that the airport had settled approximately 8 meters (26 feet) during construction, far exceeding initial projections. This substantial settlement was primarily due to the soft, compressible seabed composed of thick layers of clay and silt. To address this, engineers employed advanced construction techniques, including the use of deep foundations and a network of steel pipes to stabilize the artificial island. However, the settlement issue remained a critical concern, necessitating long-term monitoring and maintenance efforts post-opening to ensure the airport’s structural integrity and operational safety.
Long-term monitoring of Kansai Airport’s settlement has been a cornerstone of its post-opening maintenance strategy. A sophisticated system of sensors and GPS monitoring stations was installed across the airport to continuously track ground movement. These instruments measure vertical and horizontal displacement with high precision, providing real-time data to engineers and maintenance teams. The data is analyzed regularly to detect any abnormal settlement patterns that could threaten the airport’s infrastructure, such as runways, terminals, and connecting bridges. This proactive approach allows for timely interventions, ensuring that the airport remains safe and functional despite ongoing geological challenges.
In addition to monitoring, ongoing maintenance efforts have been crucial in mitigating the effects of settlement. One key measure has been the periodic adjustment of the airport’s structures to compensate for uneven settling. For example, the runway and taxiway surfaces are regularly inspected and repaired to maintain their levelness and prevent cracks or misalignments. Similarly, the airport’s buildings and bridges are equipped with adjustable supports that can be modified to counteract settlement-induced tilting or sinking. These maintenance activities are guided by the data collected from the monitoring system, ensuring that resources are allocated efficiently to areas of greatest need.
Another critical aspect of long-term maintenance is the management of groundwater levels beneath the airport. The soft seabed is highly sensitive to changes in hydrostatic pressure, and fluctuations in groundwater can exacerbate settlement. To address this, a network of wells and pumps has been installed to control the water table, minimizing additional compression of the soil. This groundwater management system is continuously monitored and adjusted based on settlement data and seasonal variations, further stabilizing the airport’s foundation.
Public transparency and international collaboration have also played a role in Kansai Airport’s long-term monitoring and maintenance efforts. The airport’s operators regularly publish reports on settlement data and maintenance activities, fostering trust among stakeholders and the public. Additionally, Kansai Airport has served as a case study for other megaprojects built on reclaimed land, with its monitoring and maintenance strategies influencing best practices globally. By sharing its experiences and lessons learned, Kansai Airport contributes to the broader field of geotechnical engineering and infrastructure management.
In conclusion, the long-term monitoring and maintenance efforts at Kansai International Airport are a testament to the importance of proactive and data-driven approaches in managing complex engineering challenges. Despite the significant settlement observed before and after its opening, the airport has remained a functional and safe hub for global aviation. Through continuous monitoring, adaptive maintenance, groundwater management, and international collaboration, Kansai Airport sets a benchmark for sustaining large-scale infrastructure projects in geologically demanding environments.
Is Cancun Airport Open? Latest Updates and Travel Information
You may want to see also
Frequently asked questions
Kansai International Airport settled approximately 3 meters (9.8 feet) before its opening on September 4, 1994.
The airport was built on reclaimed land in Osaka Bay, primarily composed of soft clay and sand. The weight of the artificial island and the airport structures caused significant subsidence due to soil consolidation.
Yes, engineers anticipated some settling, but the extent of 3 meters was more than initially projected. Measures were taken during construction to mitigate subsidence, but the natural properties of the seabed soil contributed to the settlement.
The airport was designed with flexibility to accommodate settling, including adjustable structures and a levee system to prevent flooding. Despite the settlement, the airport has continued to operate efficiently, with ongoing maintenance and adjustments to address the effects of subsidence.
