Lois Larson

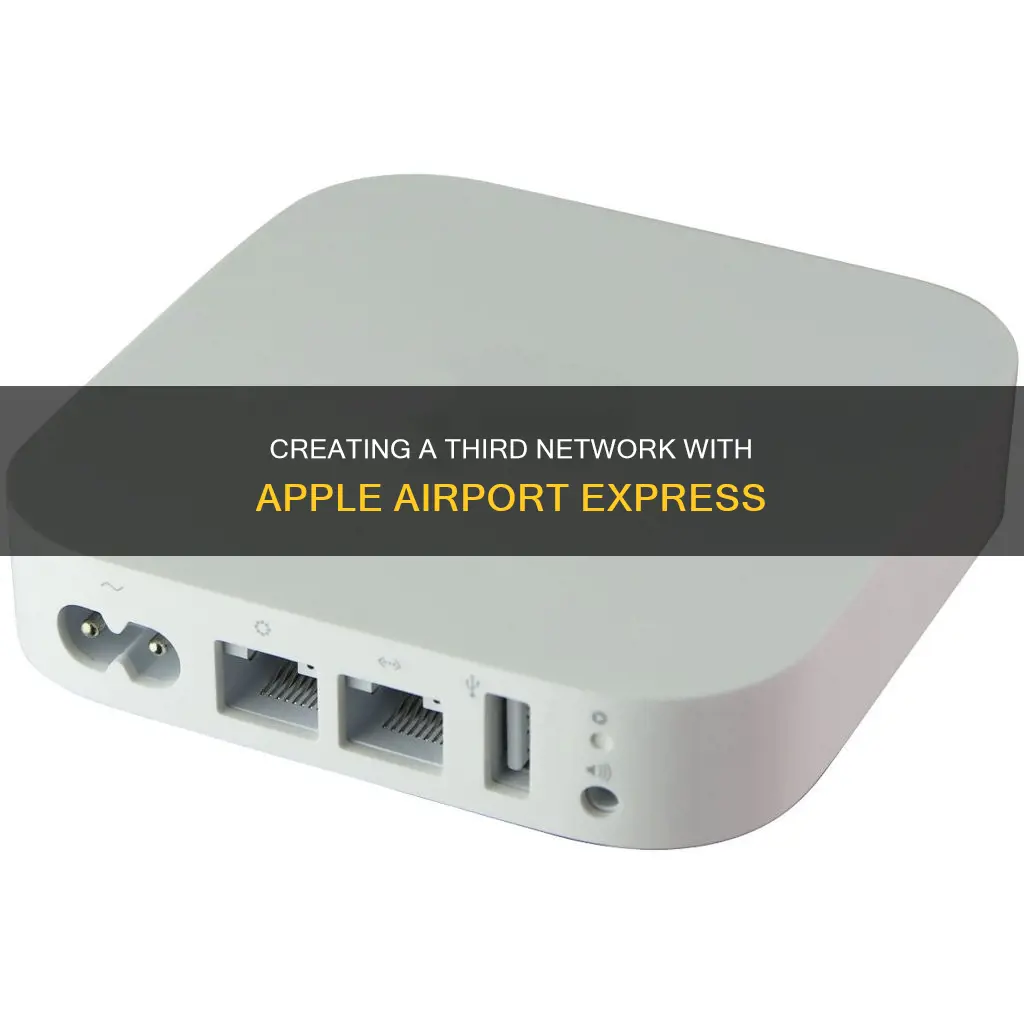

The Apple AirPort Express is a small device that allows users to set up an Internet access point. It can be used to extend the range of an existing wireless network. However, Apple's extend function is designed to work only with other Apple routers. To use the AirPort Express with a non-Apple router, users must connect it via Ethernet and set up a roaming network. In this case, the network name and password must be the same as the non-Apple network, and the security mode must be matched.
| Characteristics | Values |
|---|---|
| Extending a network with Apple Airport Express | Requires a wired Ethernet connection to a router or modem |
| Only compatible with other Apple routers for wireless range extension | |
| Newer models with 802.11n chips offer extended range and faster data transfer speeds | |
| Creating a new network with Apple Airport Express | Can be used to create a wireless Internet access point anywhere |
| Supports up to 10 users with wireless Internet access | |
| Can be connected to a printer via USB for wireless printing | |
| Can stream music and video through iTunes |
Explore related products
What You'll Learn
- Using 'Extend Network' will reduce bandwidth and download speeds
- Apple's ''extend a wireless network' option only works with other Apple routers
- AirPort Express can be used to extend a non-Apple network by using a Ethernet cable
- AirPort Utility Setup Assistant can be used to extend a network on Mac
- AirPort Express can be used to create a wireless internet access point
Using 'Extend Network' will reduce bandwidth and download speeds
The "Extend Network" option on the Apple AirPort Express is designed to work when the device is connected to another Apple wireless router. This feature can be used to extend the range of an existing wireless network. However, choosing "Extend Network" will significantly reduce the bandwidth and download speeds available to your devices connected via Wi-Fi. This is because the data has to be sent twice and the devices use some of the bandwidth to communicate with each other.
When you extend a network, the available throughput may drop to less than 60% of that of a single device. For example, one user reported that their network speed dropped from just over 90 Mbit/sec to 40 Mbit/sec when they extended their network with an AirPort Express. The drop in speed can be mitigated by configuring the AirPort Express to extend the 5GHz network instead of the 2.4GHz network.
If you have an Ethernet connection to multiple AirPort routers, creating a new network with the same name will provide better bandwidth. This is because the routers can be manually configured to operate on different bands, providing more capacity for devices to connect. However, if you want the base station to connect to the internet wirelessly, you will need to extend an existing wireless network, which will reduce the bandwidth.
To extend a network with an AirPort Express, you can connect the device to your modem/router using an Ethernet cable. The AirPort Express can then be set up to extend the network wirelessly. Alternatively, newer AirPort Express models can extend a non-Apple wireless network if they are connected to Ethernet and the non-Apple router is set to share a public IP address. In this case, you would set up the AirPort Express with the same network name and password as the non-Apple network and ensure that the connection sharing is set to "Off (Bridge mode)."
How to Change Your Name at the Airport
You may want to see also
Explore related products
Apple's ''extend a wireless network' option only works with other Apple routers
Apple's "extend a wireless network" option is a proprietary setting that Apple designed to only work with other Apple routers. It is not compatible with a third-party router using only a wireless connection. In other words, if you want to extend a wireless network using an Apple router, you will need to connect it to another Apple router.
This limitation can be frustrating for users who want to extend their existing non-Apple network or use a mix of Apple and non-Apple products. However, there is a workaround if you are able to connect the Apple router to your existing router using a permanent, wired Ethernet cable connection. In this case, you can set up the Apple router to extend the network by creating a wireless network with the same network name and password as the existing network.
It is important to note that even with this workaround, devices may or may not automatically switch between the two networks as they move around. This behaviour depends on the device, with Macs typically handling it well, while iPhones and iPads may not.
Additionally, choosing to "Extend Network" can significantly reduce the bandwidth available to your devices, as data must be relayed through multiple routers. Apple provides support articles detailing the various choices and their impacts, which can be helpful when deciding how to set up your network.
Newark Airport: Sleep or No Sleep?
You may want to see also
Explore related products
AirPort Express can be used to extend a non-Apple network by using a Ethernet cable
Apple's AirPort Express can be used to extend a non-Apple network by using an Ethernet cable. This can be done by connecting the AirPort Express to a modem/router using a wired Ethernet cable connection. The AirPort Express can then be set up to extend the network.
To do this, first make sure that the main non-Apple router is set to share a public IP address. Then, when setting up the AirPort Express, create a network name and password that are the same as the non-Apple network's. The network mode should be set to "Create a wireless network", with the connection type as "Ethernet", and Connection Sharing should be turned off and set to "Bridge mode".
If you are connecting the AirPort Express to another AirPort Express, you can use the AirPort Utility setup "wizard" or "helper" to configure the extending AirPort Express. To start the setup wizard, click on the WiFi menu at the top of your Mac's screen and look for a listing of "New AirPort Base Station". Click directly on AirPort Express and follow the prompts.
It is important to note that when connecting the AirPort Express via Ethernet, you should only connect it to one type of connection at a time (either WiFi or Ethernet). If the AirPort Express is configured for extension using WiFi and an Ethernet cable is added, it can cause a feedback loop and crash the network.
Using Fake IDs: Airport Security and You
You may want to see also
Explore related products
AirPort Utility Setup Assistant can be used to extend a network on Mac
The AirPort Utility Setup Assistant is a useful tool for extending a network on Mac. It is designed to work with Apple routers, such as the AirPort Express, AirPort Extreme, or Time Capsule.
To extend your network using the AirPort Utility Setup Assistant, first ensure that your Apple router is connected to your modem/router using an Ethernet cable. This provides the best throughput and is preferred over a wireless connection. If you are using a newer Airport Express model (compatible with 802.11n), you will need to set up the Express to be connected to Ethernet.
Next, open the AirPort Utility app on your Mac. The app will guide you through the setup process and automatically choose the settings for extending your network. However, if you prefer to customise your settings, you can tap 'Other Options' and configure the settings manually.
During the setup process, you will be prompted to connect an Ethernet cable from the WAN port on the base station you are adding to the network to a LAN port on the primary base station. If you are unable to connect the base stations using an Ethernet cable, the setup process will guide you through connecting wirelessly.
The AirPort Utility Setup Assistant will also prompt you to configure the network name (SSID) and password. Ensure that these are identical to the settings on your existing network. Additionally, check that your security mode matches, for example, if your non-Apple Wi-Fi uses WPA2-Personal, the extended network should use the same security mode.
By following these steps and using the AirPort Utility Setup Assistant on your Mac, you can easily extend your existing network and enjoy improved Wi-Fi coverage.
Oslo Pass: Available at the Airport?
You may want to see also
Explore related products
AirPort Express can be used to create a wireless internet access point
The AirPort Express is a small device that allows you to set up a wireless internet access point almost anywhere. It can be connected to your DSL (direct subscriber line) or cable modem, or your Ethernet network, and it provides wireless internet access for up to 10 users.
The AirPort Express is designed to be easy to use and set up. If you want to extend your existing Wi-Fi network, you can do so using AirPort Utility on your Mac or iOS device. The setup assistant will automatically choose the settings for extending your network, or you can choose to set up your network manually.
If you want to extend your network, you can do so wirelessly, but only if your modem/router is an Apple product. If you want to connect to a third-party router, you will need to use a wired Ethernet cable connection.
To set up a wireless network with AirPort Express, you will need to ensure that your main non-Apple router is set to share a public IP address. Then, when setting up the Express, you will need to create a network name and password, and ensure that the security mode is the same as your non-Apple wifi. The network mode should be set to "Create a wireless network," and it should connect using "Ethernet," with Connection Sharing turned off (Bridge mode).
The AirPort Express has gone through several iterations since its introduction in 2004. The latest models are compatible with 802.11n, which offers a wireless range of around 300 feet and data transfer speeds that are nearly five times faster than previous versions.
Dublin Airport: Buying Bus Tickets Upon Arrival
You may want to see also
Frequently asked questions
Yes, you can create a third network with Apple Airport Express. You can either connect it via an Ethernet cable or set up a roaming network.
First, connect an Ethernet cable from one of the Ethernet ports on the modem/router to the Ethernet port on the Apple Airport Express. If the Apple Airport Express has two Ethernet ports, connect the cable to the "O" port. Power up the device and hold the reset button for 7-8 seconds.
The extend function on the Apple Airport Express only works with other Apple routers. You can set up a roaming network by placing the Apple Airport Express in range of your primary base station, such as an AirPort Extreme or Time Capsule.
Choosing "Create Network" will create a new wireless network, while "Extend Network" will allow you to extend the range of an existing wireless network.
No, the Apple Airport Express can only wirelessly extend a Wi-Fi network provided by another Apple router.
