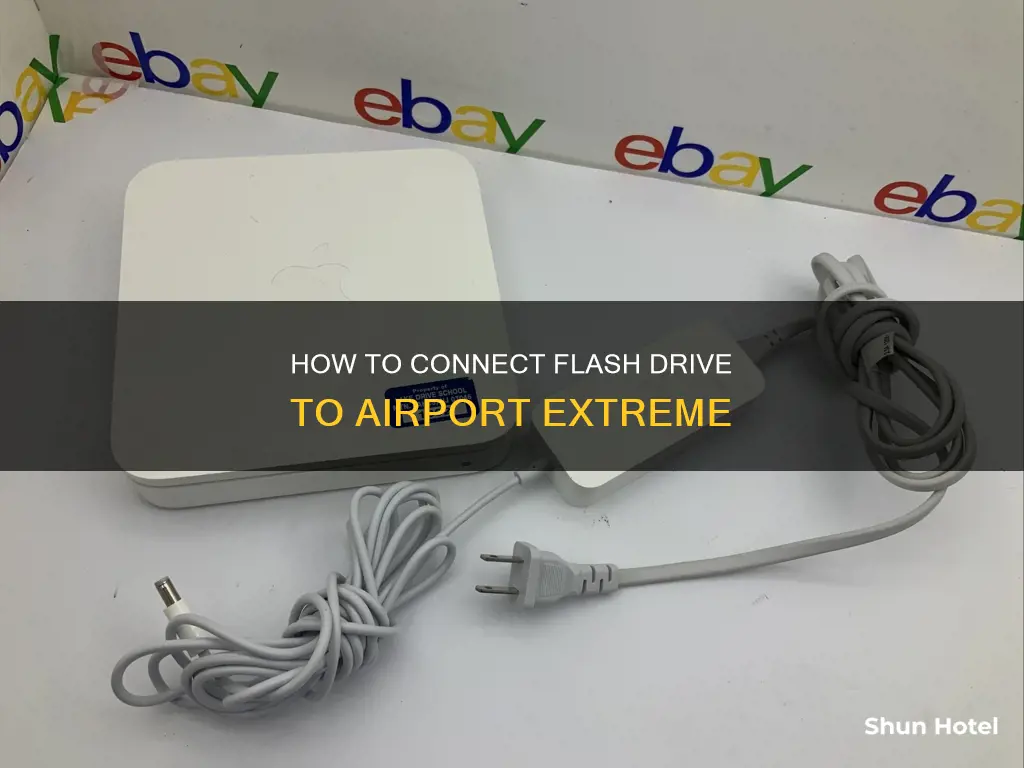

Apple's AirPort Extreme Base Station allows users to create a wireless network for their devices and computers. Interestingly, it is also possible to connect a USB hard drive to the AirPort Extreme, creating a network drive accessible to all users on the wireless network. This enables users to share documents, photos, music, and movies with others on their network. However, it is important to note that the AirPort Extreme has only one USB port, requiring the use of a USB hub to connect multiple devices. Additionally, specific steps are necessary to configure the network drive's security settings and ensure its functionality.
| Characteristics | Values |
|---|---|
| Can you hook a flash drive to an airport extreme? | Yes, you can connect a USB hard drive to an AirPort Extreme Base Station. |
| How to connect | First, connect the USB hard drive to the AirPort Extreme Base Station. Then, let the AirPort know that the drive is plugged in. Make sure the AirPort Extreme is turned on and correctly configured. |
| Functionality | The AirPort Extreme can be used as a Time Machine backup and as a network drive that can be accessed by all users connected to the wireless network. |
| Limitations | The AirPort Extreme is no longer supported by Apple and may need to be restarted frequently. |
Explore related products
What You'll Learn
Connecting a flash drive to an Airport Extreme
You can connect a flash drive to an Airport Extreme. The first step is to connect the flash drive to the Airport Extreme Base Station's USB port.
The Airport Extreme has only one USB port, but you can connect multiple devices if you use a USB hub. For example, you could connect a printer, a hard drive, and a scanner to the Airport Extreme.
Once you have connected the flash drive, open the AirPort Utility application. Click on Manual Setup, then Disks. Verify that the flash drive is shown in the pane, then click on File Sharing. Select the Enable file sharing checkbox.
Now, you will need to select a security setting for your network drive. The AirPort Extreme Base Station allows you to select one of three options:
- With accounts: This is a good option for networks with lots of users who require different types of access. Every individual will have their own username and password. You can allow users to have "read only" or "read and write" access permissions to the network drive.
- With an Airport Extreme password: To access the network drive, all users will enter the password you set for the AirPort Extreme Base Station. This option is not recommended for networks with multiple users, as anyone with the password could change the AirPort Extreme’s configuration.
- With a disk password: Enter a password for the network drive.
Purchasing an Opus Card at the Airport: Is It Possible?
You may want to see also
Explore related products
Using a USB hub to connect multiple devices
The AirPort Extreme Base Station can be used to create a wireless network for computers and devices in your home or office. You can also connect a USB hard drive to an AirPort Extreme to create a network drive that can be accessed by all users connected to the wireless network. This is a great way to share documents, photos, music, and movies with other people on your network.
The AirPort Extreme has only one USB port, but you can connect multiple devices if you use a USB hub. For example, you could connect a printer, a hard drive, and even multiple hard drives to the AirPort Extreme. To do this, open the AirPort Utility application and click on "Manual Setup", then "Disks". Verify that the hard drive you connected to the AirPort Extreme is shown in the pane, then click on "File Sharing" and select the "Enable file sharing" checkbox.
It is important to note that the AirPort Extreme needs to be told to share the connected disk. To do this, use the AirPort Utility on a Mac to reconfigure your AirPort Extreme. Click on "Manual Setup", then "Disks", and then "File Sharing". You should see your connected disk listed and will need to enable file sharing.
When using a USB hub with the AirPort Extreme, it is recommended to use a powered USB hub, especially if you are connecting multiple hard drives that require more power. A powered USB hub has its own power plug, ensuring that the hub does not draw power from the AirPort Extreme USB port, which may not provide sufficient power for multiple devices.
By following these steps and using a powered USB hub, you can connect multiple devices to your AirPort Extreme and create a shared network drive for your wireless network.
Clear Airport: Guest Access Explained
You may want to see also
Explore related products
Configuring security settings
Configuring the security settings for your network drive is a crucial step in ensuring your data remains protected. Here is a comprehensive guide on how to configure the security settings for your Airport Extreme Base Station:
Firstly, open the AirPort Utility application on your Mac. This application can be found in the Utilities folder within your Applications. Once you have located and opened the application, you will need to click on "Manual Setup". This will reveal additional options. From the new window, click on "Disks".
At this point, you should see your connected hard drive listed. Proceed by clicking on "File Sharing". From the Secure Shared Disks menu, you will be able to select your preferred security option. There are two primary methods to secure your network drive:
With Accounts
This option is ideal for networks with multiple users who require varying levels of access. Each user will have their own unique username and password. You can further customise their access by granting \"read only\" or \"read and write\" permissions. This is particularly useful when users need to view files but should not modify or create new ones. To set up this option, click on "Configure Accounts" and create an account for each user who will access the drive.
With a Disk Password
Alternatively, you can secure your network drive with a single password. This means that all users will use the same password you set for the Airport Extreme Base Station to access the drive. This option is stored within the AirPort Utility Application. While convenient, this method is not recommended for networks with multiple users as anyone with the password can change the configuration.
By following these steps and selecting the most suitable security option for your network, you can effectively secure your Airport Extreme Base Station and protect your data.
Buying Cigarettes at Dallas Fort Worth Airport: Is It Possible?
You may want to see also
Explore related products
File sharing
Once the USB hard drive is connected, users must open the AirPort Utility application and click on "Manual Setup", followed by "Disks". The hard drive should appear in the pane, and users can then click on "File Sharing" and select the "Enable file sharing" checkbox.
It is important to note that the hard drive must be properly formatted to work with the AirPort Extreme. For example, NTFS-formatted drives are not compatible, while FAT16, FAT32, and HFS+ volumes can be mounted. Additionally, some hard drives may require a powered USB hub to function properly.
After enabling file sharing, users can access the network drive on their Mac and configure its security settings. The AirPort Extreme offers three security options: "With accounts", "With a disk password", and "With an AirPort Extreme password". The "With accounts" option allows for different types of access, such as "read only" or "read and write", making it suitable for networks with multiple users requiring varied levels of access. The "With a disk password" option provides a single password for the network drive, while the "With an AirPort Extreme password" option uses the same password as the AirPort Extreme Base Station.
Airports: Masks, a Requirement or a Choice?
You may want to see also
Explore related products
Formatting requirements
The AirPort Extreme Base Station allows you to select one of three options to secure your network drive: with accounts, with a disk password, or with an AirPort Extreme password.
When it comes to formatting requirements, the AirPort Extreme will only support a hard drive that is formatted in Mac OS Extended (Journaled), also known as HFS+ or in FAT32. It will not support a drive that is formatted in other Windows formats or APFS.
To format the drives, they must be attached directly to a Mac (or PC). It is not possible to format a drive connected to the AirPort Extreme. Connect each drive to the Mac and format it to HFS+ (Mac OS X Extended Journaled). Be sure to set the partition scheme to GUID, as well as format the partition to HFS+.
If you want to format large volumes with FAT32, the HP USB Disk Storage Format Tool will come in handy.
Additionally, when setting up a new drive, you will need to use the AirPort Utility on a Mac to reconfigure your AirPort Extreme. Open the AirPort Utility application (found in Applications > Utilities). Click on \"Manual Setup\", then \"Disks\". Verify that the hard drive you connected is shown in the pane. Click \"File Sharing\" and select the \"Enable file sharing\" checkbox.
Finally, click "Update". The AirPort Extreme will restart and apply the security settings. Now anyone with the password (or an account) can access the network drive.
Club Mobay: Book at Airport or Before?
You may want to see also
Frequently asked questions
Yes, you can. You can use an AirPort Extreme Base Station to create a wireless network for your devices and computers. You can also connect a USB flash drive to an AirPort Extreme to create a network drive accessible to all users connected to the wireless network.
First, connect the USB flash drive to the AirPort Extreme's USB port. Then, open the AirPort Utility application on your Mac and click on 'Manual Setup'. Click on 'Disks' and verify that your flash drive is shown in the pane. Click on 'File Sharing' and select the 'Enable file sharing' checkbox.
You can secure your flash drive on AirPort Extreme by selecting one of the three security options:
- With accounts: This is suitable for networks with multiple users who require different types of access. Each user will have their own username and password and can be given "read only" or "read and write" access.
- With a disk password: Enter a password for the network drive.
- With an AirPort Extreme password: All users will enter the password set for the AirPort Extreme Base Station to access the network drive.
