The iBook G4 is known to have issues with its airport/bluetooth card socket on the logic board, which can cause kernel panic events. Users have reported that removing the airport card and using a USB wireless dongle instead can fix the issue. However, it is important to note that simply disabling the airport card through software may not be sufficient, as some users have reported that they still experienced kernel panics after doing so. Therefore, physically removing the airport card and ensuring that it is completely disconnected may be necessary to resolve the issue.
Explore related products
What You'll Learn
Removing the airport card and booting from an external hard drive

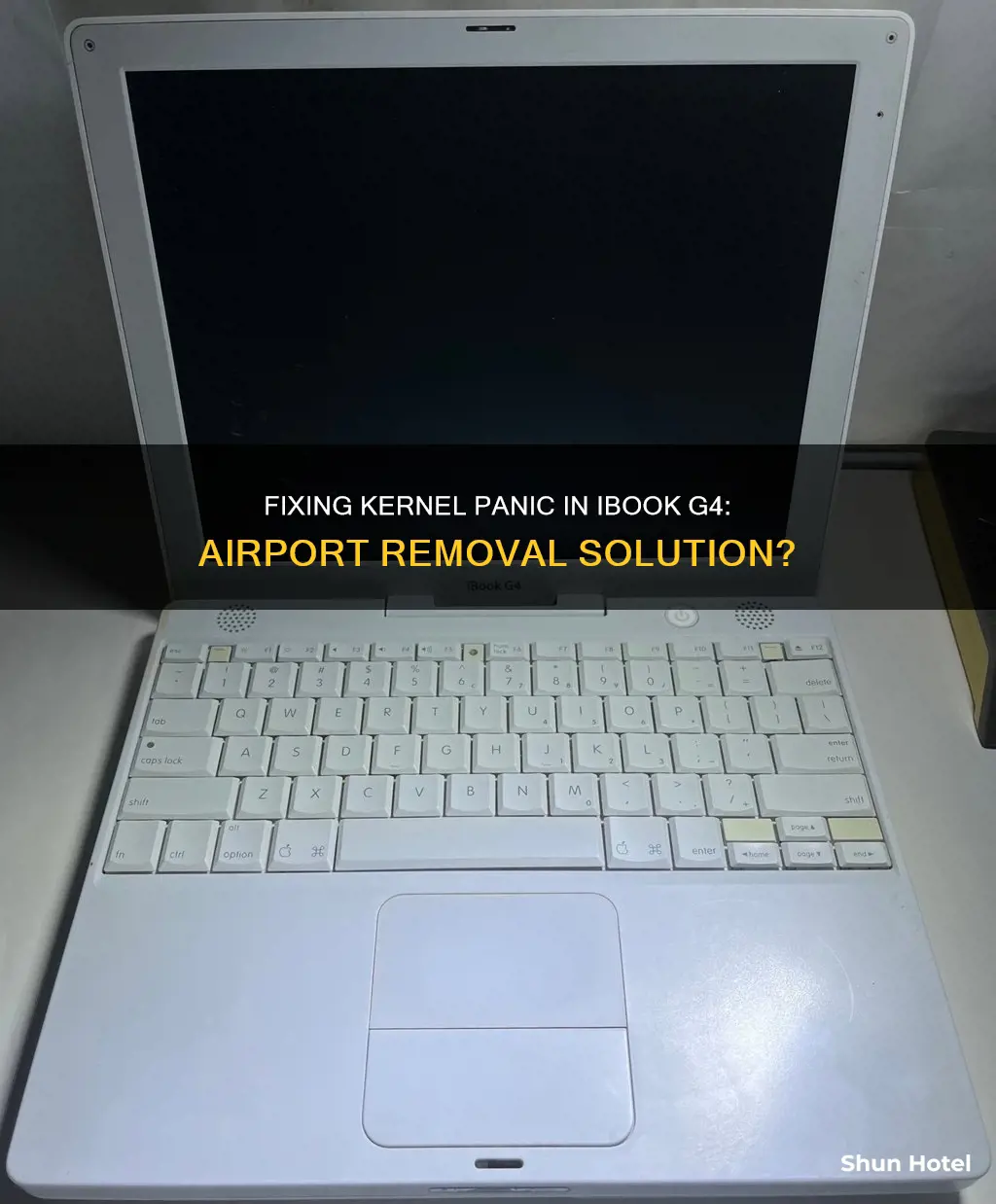

The iBook G4 12" 1.33 GHz is known to have a problem with its airport/bluetooth socket on the logic board, which can cause kernel panic events. One solution is to remove the airport card and boot from an external hard drive.
To remove the airport card, follow these steps:
- Power down your iBook G4 and flip it over so the bottom is facing up.
- Remove the battery and set it aside.
- Loosen and remove the screws that secure the bottom cover using a suitable screwdriver. Keep the screws in a safe place.
- Gently pry open the bottom cover with a spudger or a thin tool.
- Locate the airport card. It is usually attached to the logic board and often found near the Bluetooth card.
- Disconnect the antenna cables from the airport card, taking note of their positions for reassembly.
- Remove any screws or brackets securing the airport card in place.
- Carefully lift and remove the airport card from the logic board.
Once the airport card is removed, you can try booting your iBook G4 from an external hard drive to see if the kernel panic issue persists. If the issue disappears, you can confirm that the airport card or its socket was the culprit.
It is worth noting that removing the airport card will disable the built-in wireless capability of your iBook G4. If you require wireless connectivity, you may need to use a USB wireless dongle or Ethernet cable as a substitute.
Minneapolis-St. Paul Airport: Pet-Friendly Travel
You may want to see also
Explore related products
Disabling airport and Bluetooth to check if the problem persists
If you are experiencing kernel panic issues with your iBook G4, it is recommended to disable Airport and Bluetooth to check if the problem persists. This can be done by turning off the Airport and Bluetooth connections in the settings or through hardware modifications.
One method to disable Airport is to remove the Airport card from the iBook G4. This can be achieved by opening up the iBook, locating the Airport card, and carefully disconnecting it. Once the card is removed, you can attempt to boot the iBook and observe whether the kernel panic issue still occurs. If the iBook works normally without kernel panics, it indicates that the Airport card or its socket was faulty.
In some cases, users have reported that simply turning off the Airport connection in the software settings was not sufficient, and they still experienced kernel panics. Therefore, physically removing the Airport card can provide a more definitive test to isolate the issue.
Additionally, there have been suggestions to try using a USB wireless dongle or an Ethernet cable for internet connectivity instead of relying on the built-in Airport card. This can help determine if the issue is specific to the Airport card or related to wireless connectivity in general.
It is worth noting that some iBook G4 models have a known problem with the airport/Bluetooth socket on the logic board, which can lead to kernel panic events. Therefore, disabling both Airport and Bluetooth can help narrow down the cause of the issue. If the iBook G4 works without problems after disabling these connections, it confirms that the airport socket is faulty, and the card may need to be replaced or removed entirely.
Airport Security and THC Vapes: What's the Deal?
You may want to see also
Explore related products
Using a USB wireless dongle as a substitute for the airport card
The iBook G4 12" 1.33 GHz is known for experiencing kernel panic events due to issues with its airport/bluetooth socket on the logic board. This issue typically arises after updating the operating system from Mac OS 10.4.8 to 10.4.9.
To resolve this problem, you can attempt several methods:
Deactivating Airport and Bluetooth
One suggested fix is to deactivate Airport and Bluetooth to determine if the issue lies with the airport socket. If the iBook functions without problems after deactivation, your airport socket is likely faulty.
Reseating the Airport Card
If the issue does indeed relate to the airport socket, you may try reseating the airport card. However, it's important to note that this solution may only be temporary, as the problem often reoccurs.
Removing the Airport/Bluetooth Card
If the above methods do not provide a sustainable solution, you may need to remove the airport/bluetooth card from the logic board entirely. This step can be challenging, as the AirPort Extreme Card on the iBook G4 model is semi-permanently attached to the logic board.
Substituting with a USB Wireless Dongle
As a more convenient alternative, you can substitute the airport card with a USB wireless dongle, which can be purchased online for a relatively low cost. This option eliminates the need to open up your iBook and make hardware adjustments.
Replacing the Logic Board
If none of the above solutions work, you may need to consider replacing the entire logic board. However, this option may be more costly and technically demanding.
It is important to note that while these solutions have been suggested by various sources, they may not guarantee a permanent fix for the kernel panic issue. Each iBook G4 may have unique considerations, and it is always recommended to consult expert advice or official support channels for specific guidance tailored to your device.
Hair Extensions and Airport Security: What You Need to Know
You may want to see also
Explore related products
Replacing the logic board
If your iBook G4 is experiencing kernel panic issues, it may be due to a faulty airport/bluetooth socket on the logic board. Before replacing the logic board, you can try some troubleshooting steps to identify the issue:
- Deactivate Airport and Bluetooth: Disable Airport and Bluetooth in your iBook G4 settings. If the issue persists, the problem may not be related to the airport/bluetooth socket.
- Remove the Airport Card: Open your iBook G4 and disconnect the airport card. Try booting the device without it. If the issue disappears, the airport socket or card is likely faulty.
- Use a USB Wireless Dongle: Instead of using the built-in airport card, you can try using a USB wireless dongle as a substitute. This can confirm if the issue is specific to the airport card or socket.
If the above steps resolve the kernel panic issue, then your problem is related to the airport/bluetooth functionality, and you may not need to replace the logic board. However, if the issue persists or if you prefer to have built-in wireless functionality, replacing the logic board can be considered.
- Preparation: Place your iBook G4 upside down on a flat surface. Use a coin to rotate the battery locking screw 90 degrees clockwise, and then lift the battery out.
- Remove the Keyboard: Pull the keyboard release tabs towards you and lift up on the keyboard until it pops free. If it's stuck, use a small flathead screwdriver to turn the keyboard locking screw 180 degrees in either direction and try again. Flip the keyboard over and rest it face-down on the trackpad area.
- Disconnect Components: Disconnect the Reed Switch Board connector from the logic board. Detach the RJ-11 cable from the top of the modem. Remove any screws securing components like the RAM shield, DC-In board, and modem. Carefully lift and set aside the components you've unscrewed.
- Remove Phillips Screws: There are several Phillips screws of various sizes that you'll need to remove. These include screws securing the top shield, along the left edge and around the battery compartment, and near the optical drive bezel. Use a magnetic screwdriver if possible to lift them out easily.
- Disconnect Cables: Use a spudger or a small flathead screwdriver to carefully disconnect various cables from the logic board. This includes the speaker cable, blue and white power cables, and antenna cables. Be gentle to avoid damaging the connectors.
- Lift the Upper Case: After disconnecting the necessary cables, you can lift and remove the upper case of your iBook G4.
- Replace the Logic Board: With the upper case removed, you'll have access to the logic board. Carefully disconnect any remaining cables and remove any screws securing the logic board. Install the new logic board, ensuring all connections are secure and properly seated.
- Reassembly: Follow the steps in reverse order, making sure to reconnect all cables and replace all components and screws in their original positions. Take your time and refer to a guide if needed.
Smart Luggage Tracking: Your Bag, Your Airport
You may want to see also
Explore related products
$118.99
$92.99
$92.99
$118.99
Checking for misplaced screws to the upper shield
The iBook G4 12" 1.33 GHz model is known for having a problem with the airport/bluetooth socket on the logic board, which can cause kernel panic events. One solution is to remove the airport card and see if the issue persists. If the iBook works without problems, then the airport socket is likely faulty.
To check for misplaced screws to the upper shield, you will need to perform the following steps:
First, lift the bottom shield off. Then, remove the single Phillips-head screw that is securing the DC-In board. Angle the DC-In board out of its compartment. You may need to remove any tape that is securing the board to the case.
Next, lift the DC-In cable from the adhesive attaching it to the logic board. Disconnect the DC-In cable from the logic board. To do this, wiggle the connector parallel to the surface of the logic board while applying slight tension.
Now, remove the three 3 mm Phillips screws around the battery compartment, the three 4.5 mm Phillips screws along the optical drive bezel, the one 12 mm Phillips screw in the lower right corner, and the four 14.5 mm Phillips screws.
Place the computer on a soft cloth to prevent damaging the logic board. Turn over the computer and open it. Remove the three Phillips screws from the edges of the keyboard area.
Lift the upper case and use a spudger or your finger to disconnect the trackpad connector hidden beneath the white plastic tab. Be careful when lifting the upper case, as its tabs are still attached to the metal frame.
Now you can check for any misplaced screws in the upper shield. Make sure to only use shorter screws for the top shield. Longer screws can make a short to the logic board and cause issues.
Building a Hangar: Local Airport Opportunities
You may want to see also
Frequently asked questions
Deactivate Airport and Bluetooth and check if the problem persists. If the iBook works without problems, your airport socket is faulty. Try removing the airport card and booting the iBook. If it works normally, the airport socket is probably faulty.
You can try to reseat the airport card, but the problem may reappear. The only solution may be to replace the logic board.
The iBook G4 is known to have problems with the airport/bluetooth socket on the logic board, which can cause kernel panic events.
The issue could be related to the shields. Misplaced screws to the upper shield can make a short to the logic board. It could also be due to a faulty fan or RAM.
