The Airport Time Capsule is a two-in-one device that acts as a Wi-Fi router and an external hard drive that automatically backs up all the computers on your wireless network. It is easy to use and flexible, providing fast Wi-Fi and backup for crucial files for Apple appliances. It can be used with Time Machine and as a shared drive with a Windows PC. The Time Capsule can be accessed via Ethernet and can be used as soon as it is booted up and connected to a WAN router. It is also possible to connect a USB drive to the Airport Time Capsule.
Explore related products
What You'll Learn
Using an Ethernet cable
To access your Airport Time Capsule drive using an Ethernet cable, you will need to connect it to your modem/router or directly to your Mac.
Connecting to a Modem/Router
- Connect an Ethernet cable to the Time Capsule and your broadband modem or router.
- Plug the Time Capsule into a power outlet using the AC adapter.
- On your Mac, open the AirPort Utility app from Applications > Utilities folder.
- Select Time Capsule and select Manual Setup.
- Click the Time Capsule tab below the row of icons.
- Click the Wireless tab and change the setting for Wireless Mode to "Off".
- Click the Internet icon, then click the Internet Connection tab.
- Select "Connect Using = Ethernet" and "Connection Sharing = Off (Bridge Mode)".
- Update/save the settings and wait for about a minute.
Connecting Directly to Mac
- Connect an Ethernet cable to the Time Capsule and your Mac.
- Disable the Wi-Fi by accessing AirPort Utility, selecting your device, and turning off the wireless radio under Wireless settings.
- Ensure Time Machine is set to back up to the Time Capsule's disk over the wired connection.
Additional Tips
- If you are connecting to a Mac, you may need to plug the Ethernet cable into the WAN port on the Time Capsule and your Mac.
- You can also use a USB enclosure to read the drive, but this will require a powered enclosure for the 3.5" hard disk drive.
- If you are connecting to a network modem or router, you may need to perform a Hard Reset on the Time Capsule to erase the current network settings and reconfigure it with the correct settings.
Buying Sim Cards at Beijing Airport: Is it Possible?
You may want to see also
Explore related products
Using a VPN tunnel
- Choose a VPN Service: Select a VPN service that meets your requirements, such as ExpressVPN, which offers servers in various geographic locations.
- Set Up a VPN Client: Install and configure the VPN client software on your device. This could be the built-in macOS VPN client or a third-party client. Follow the instructions provided by your chosen VPN service for the setup process.
- Connect to the VPN: Once the VPN client is set up, connect to the VPN server or appliance using your VPN credentials.
- Access the Time Capsule: After establishing a VPN connection, you can access the Time Capsule drive using Finder on macOS or FileBrowser on iOS/iPadOS devices. Locate the AirPort Disk under Locations (macOS Mojave) or Shared (pre-macOS Mojave).
- Enable File Sharing: On your Time Capsule, enable file sharing and disk sharing options. Ensure that "Secure Shared Disks" are set to "With base station password" and Guest Access is set to "Not allowed" to prevent unauthorized access.
- Port Forwarding: To access your Time Capsule from outside your local network, you may need to set up port forwarding on your router. Forward a specific port (e.g., 548 for AFP) to the internal IP address of your Time Capsule.
- Remote Access: You should now be able to access your Time Capsule remotely while connected to the VPN. Use the URL format "afp://{public_ip}:port_number" to access the Time Capsule drive over the internet.
It is important to note that some users have reported challenges with using a VPN to access their Time Capsule, especially when dealing with different subnets and firewall configurations. You may need to consult specific forums or seek technical assistance for detailed guidance on troubleshooting these issues.
What Foods Can You Bring to San Jose Airport?
You may want to see also
Explore related products
Using the AirPort Utility app
To access your Airport Time Capsule drive, you will need to download and install the AirPort Utility app on your device. This app is available for iOS, iPadOS, macOS, and Windows.
Once you have downloaded the app, open it and click on “Other Wireless Devices” in the upper-left corner of the screen. From there, select your AirPort Time Capsule and follow the prompts to create a new network. You will be asked to name your network and create a password. After you have completed these steps, restart your modem.
If you are using a Mac, you can also access your AirPort Time Capsule drive by opening Finder and going to Applications. Double-click on the Utilities folder, and then double-click on Airport Utility to open the app.
If you are using an iOS device, you can browse your Time Capsule files by launching the AirPort Utility app and clicking on the Time Capsule. Tap the "Edit" button, and then select the “Internet” tab. The “Domain Name” forms the second part of the network name and must be appended to the 'Base Station Name'. For example, if your Base Station Name is "TimeCapsule", the full network name would be "TimeCapsule.local".
Additionally, if you are using a VPN, you can establish a VPN tunnel to the VPN server or appliance using a macOS Built-in or third-party VPN client. Once connected, use Finder to locate the AirPort Disk under either Locations (macOS Mojave) or Shared (pre-macOS Mojave).
It is important to note that if you are using an older operating system, such as OSX 10.7 or iOS 6.1, you may encounter compatibility issues with the AirPort Time Capsule.
Airport Scanners: Friend or Foe for Computers?
You may want to see also
Explore related products
Using the FileBrowser app
To access an Airport Time Capsule drive using the FileBrowser app, follow these steps:
First, ensure you have downloaded the FileBrowser app on your device. This app allows you to access your Time Capsule files from an iPhone or iPad.
Next, open the Airport Utility app to manage your Time Capsule. You can then launch the AirPort Utility and select your Time Capsule by clicking on it and tapping the 'Edit' button.
To form the network address, go to the "Internet" tab to reveal the "Domain Name", which must be appended to the "Base Station Name". For example, if the "Base Station Name" is "TimeCapsule", and the "Domain Name" is "local", then the full network name is "TimeCapsule.local".
Enter this full network name into FileBrowser's "Name or URL" field. If you choose the “With accounts” option, the username you configure will be the same as the one you enter into FileBrowser's Username field. For the other options, leave the Username field blank and just enter the password.
Tap "Add Location" on the home screen, then "Manual Setup", and select "TimeCapsule". Enter the IP address or full domain name of your Time Capsule. Set the username and password fields according to how you configured file sharing. Tap the new location on your home screen to connect.
Additionally, if you want to access your media files stored in your Airport Time Capsule, you can use the File Browser app. However, note that some users have reported issues with setting up this app.
Airports Near Field, BC: Travel Options and Accessibility
You may want to see also
Explore related products

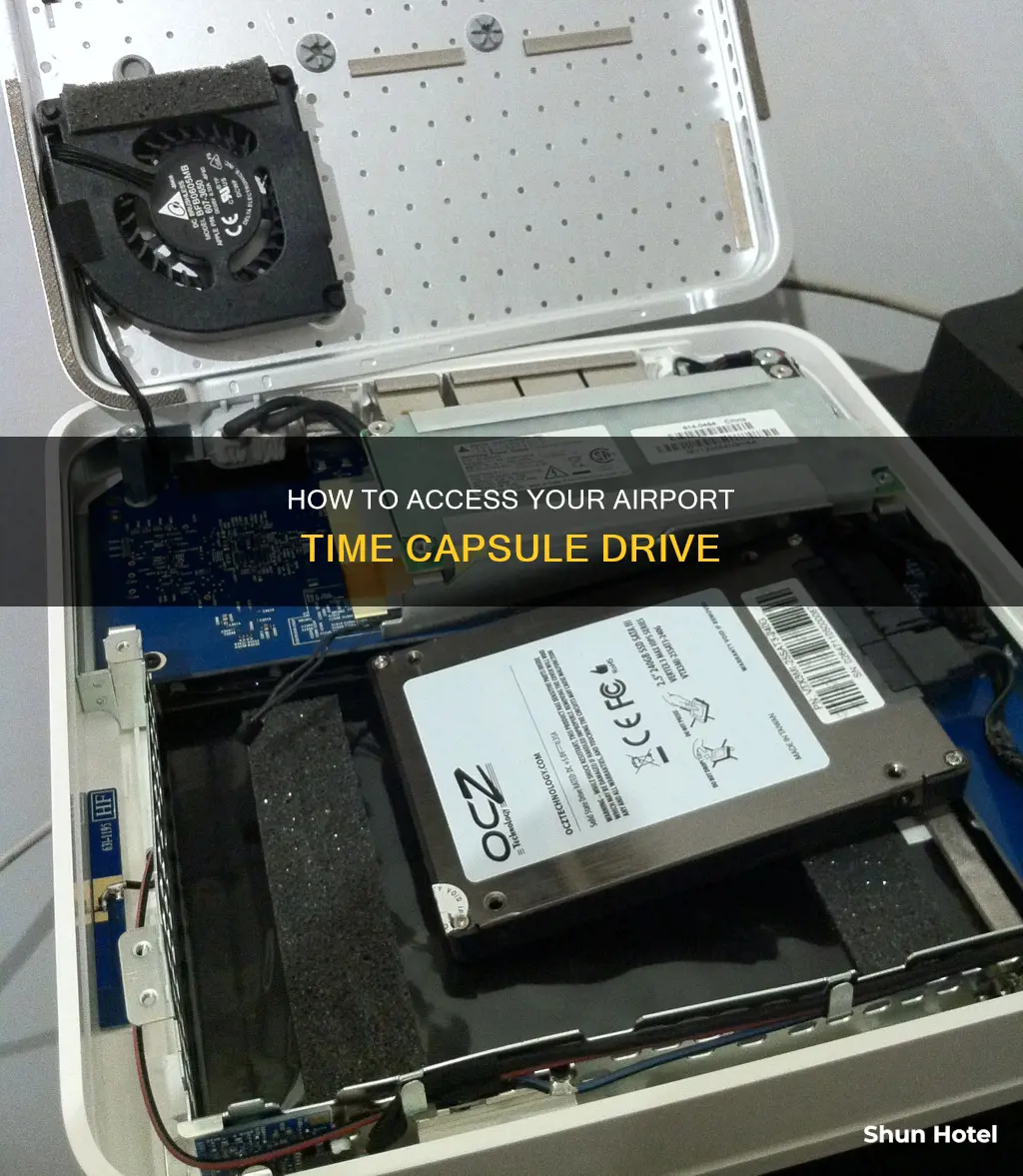

Removing the HDD and using a USB enclosure
If your Apple Airport Time Capsule is malfunctioning, you can remove its internal HDD and place it in a 3.5" HDD enclosure or casing. This will allow you to access your data without having to pay Apple for an expensive data recovery service.
To do this, you will first need to purchase a housing for your old drive. The brand Acomdata is recommended, as it is quick, easy, and looks nice. You will need to find a housing that is compatible with your drive. For example, if you have a 3.5-inch SATA drive, you will need to find a 3.5-inch SATA-compatible housing.
Once you have the housing, putting the drive inside is straightforward. Simply plug everything in, hook the drive to your computer, and power on the drive.
It is important to note that you cannot remove the drive and connect it directly to your Mac, as the TC drive uses a custom format only accessible within the TC via the AirPort Utility. However, you can use a hard drive dock or enclosure to attach the drive externally and copy the data off.
Additionally, you can use Time Machine to use the drive as a Time Capsule for backing up your HD. You can also browse your Apple Time Capsule files with your iPhone or iPad using the FileBrowser app.
Cruise Tags: Airport Luggage Essentials?
You may want to see also
Frequently asked questions
You can access your Airport Time Capsule drive by connecting it to your laptop via a USB-SATA adapter or an external hard drive case.
To set up your Airport Time Capsule, you can follow these steps:
- Open the AirPort Utility app.
- Click "Create New Network" and then "Next".
- Name your network and base station.
- Create a password.
- Restart your modem.
- Enable a guest network (optional).
Yes, you can access your Airport Time Capsule drive remotely over the Internet from a Mac or iOS/iPadOS device using a VPN tunnel.
